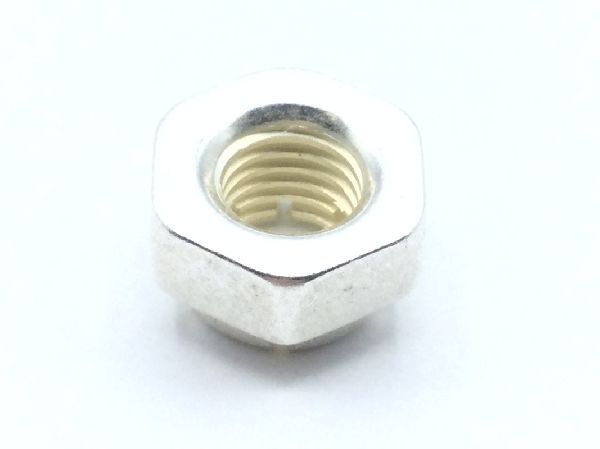

MS21046C4 Self-Locking Hexagon Nut

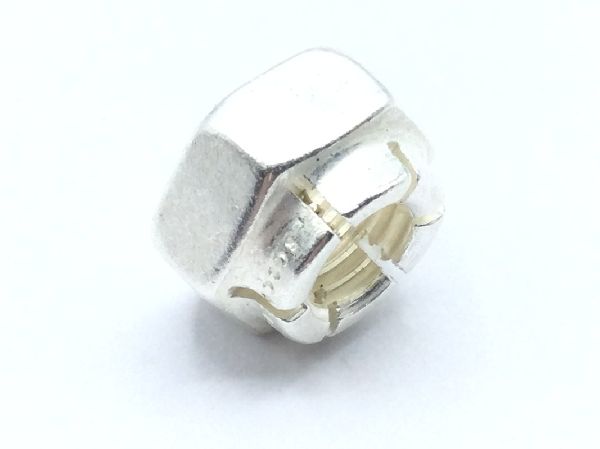

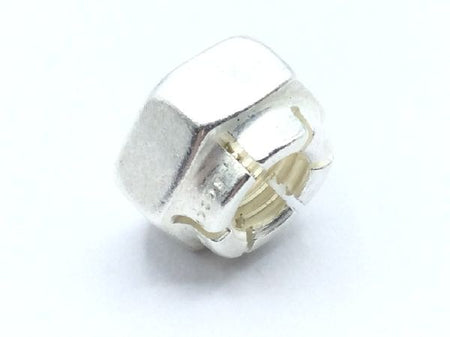

MS21046C4 Self-Locking Hexagon Nut (2)

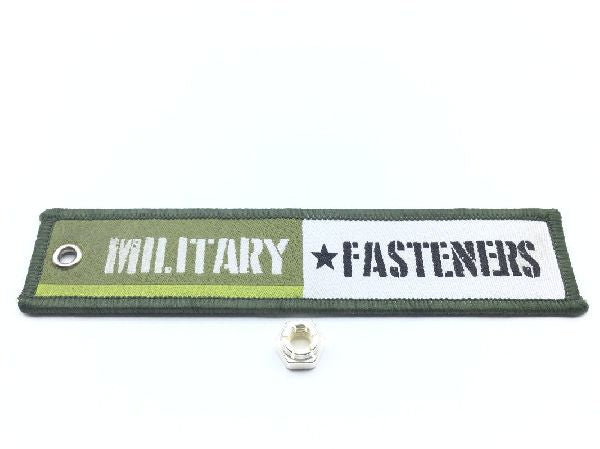

MS21046C4 Self-Locking Hexagon Nut (3)

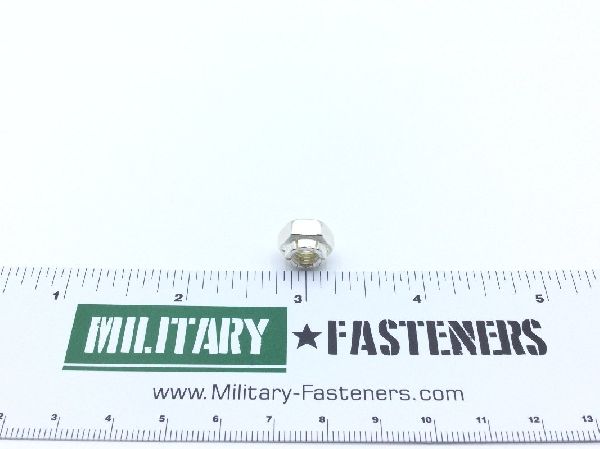

MS21046C4 Self-Locking Hexagon Nut (4)

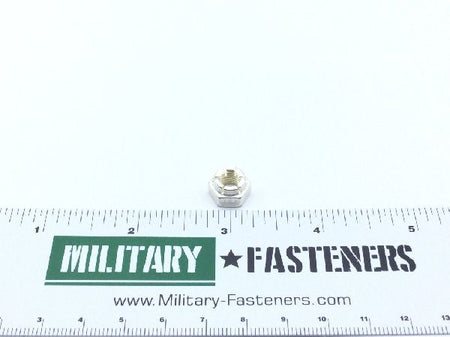

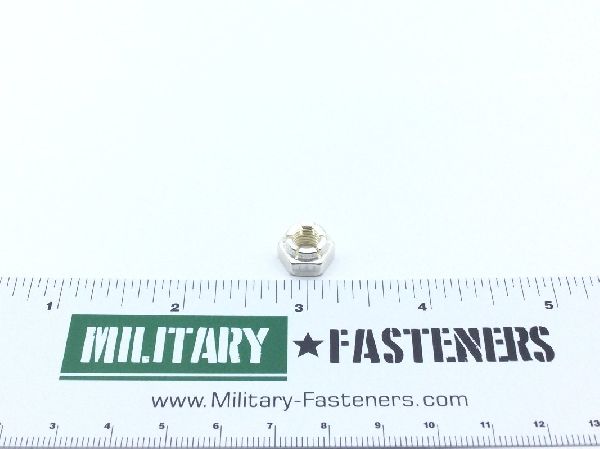

MS21046C4 Self-Locking Hexagon Nut (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21046C4 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Stainless Steel

Surface Treatment

Ams 2410 assn standard single treatment response

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.250 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees
Locking Feature: Prevailing torque all metal design
Nut Height: Between 0.240 inches and 0.328 inches
Nut Style: Hexagon
Precious Material: Silver
Precious Material And Location: Silver
Tempurature Rating: 800.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Width Across Flats: Between 0.430 inches and 0.439 inches
