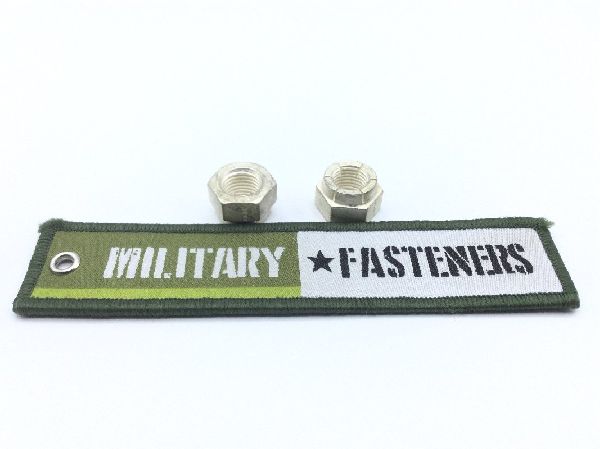

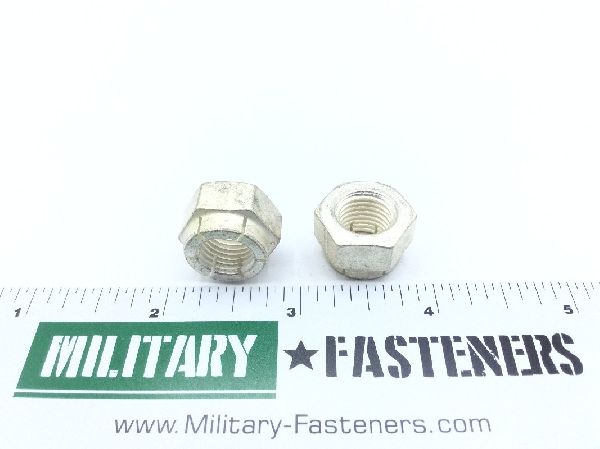

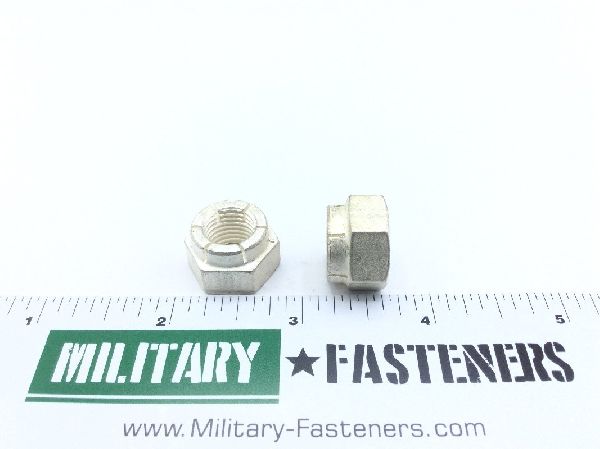

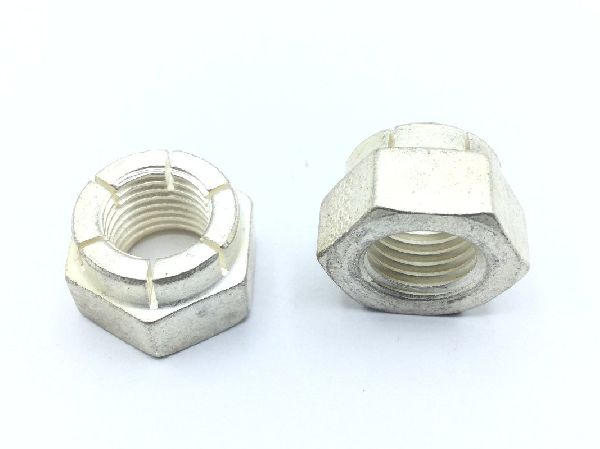

MS21046C7 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $12.82

Units per Pack 2

Price per Pack $25.64

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $25.64

Add item to quote

Material

Stainless Steel

Surface Treatment

Ams 2410 assn standard single treatment response

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.438 inches

Bearing Surface Type: Flat
Counterbore Diameter: 0.447 inches nut and 0.487 inches nut
Countersink Angle: 88.0 degrees nut
Locking Feature: Prevailing torque all metal design
Nut Height: Between 0.435 inches and 0.469 inches
Nut Style: Hexagon
Precious Material: Silver
Precious Material And Location: Silver
Tempurature Rating: 800.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.679 inches and 0.690 inches
