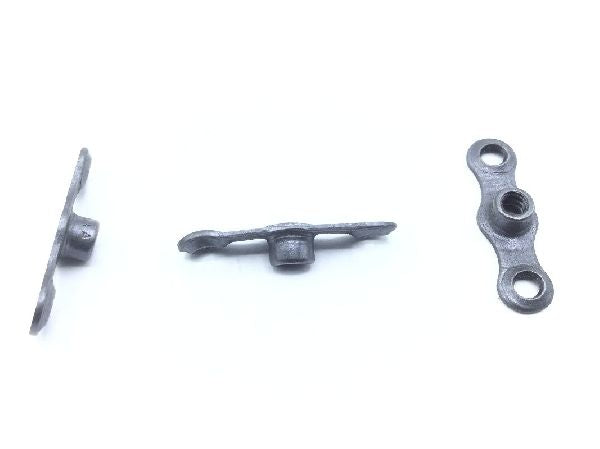

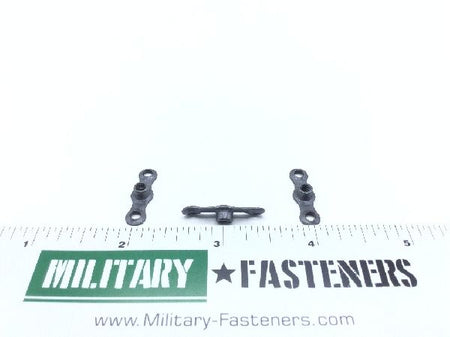

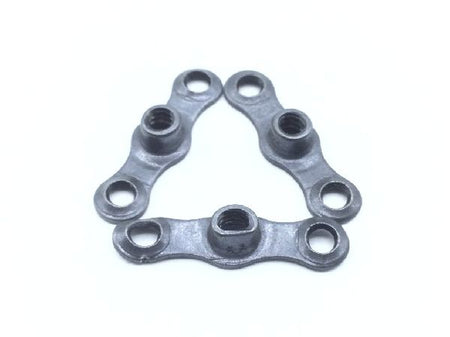

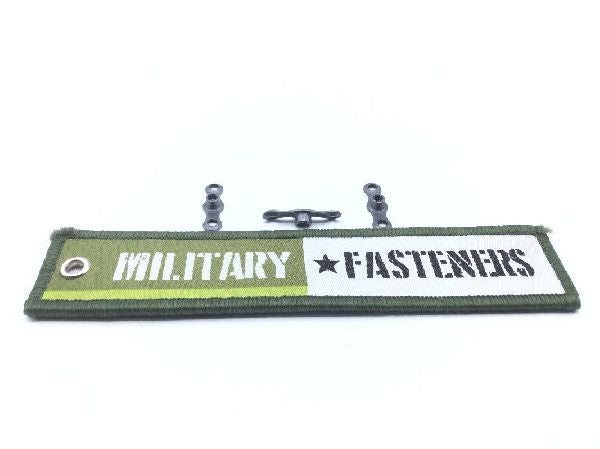

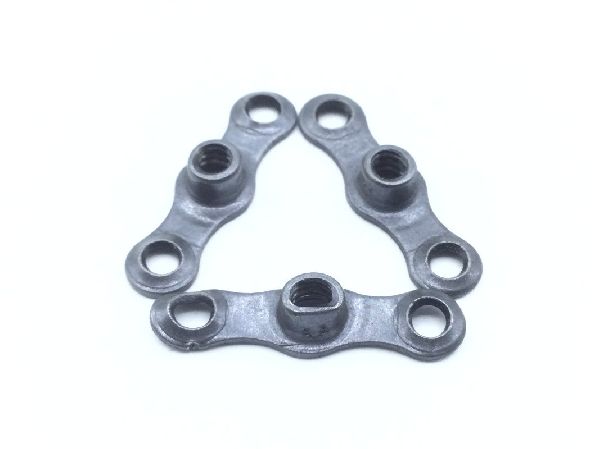

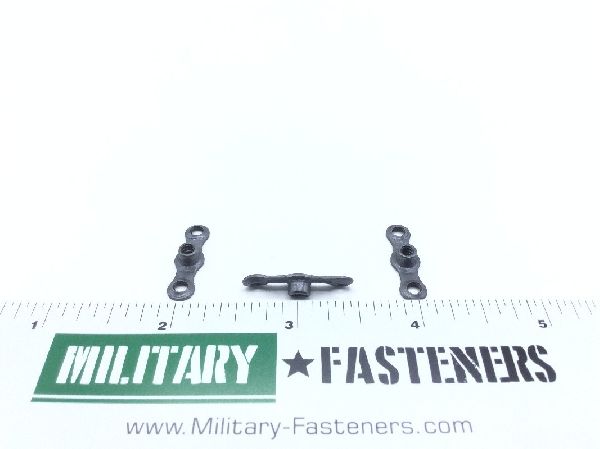

MS21047L06K Self-locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.66

Units per Pack 25

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.138 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.686 inches and 0.69 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches
Hardness Rating: 49 rockwell c
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Countersink Angle: Between 98 degrees and 102 degrees
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Mounting Provision Location: Opposite nut projection side
Nut Height: 0.171 inches
Nut Length: 0.948 inches
Nut Mounting Provision: Countersunk holes
Nut Style: Plate
Plate Thickness: 0.047 inches
Plate Width: Between 0.239 inches and 0.265 inches
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
