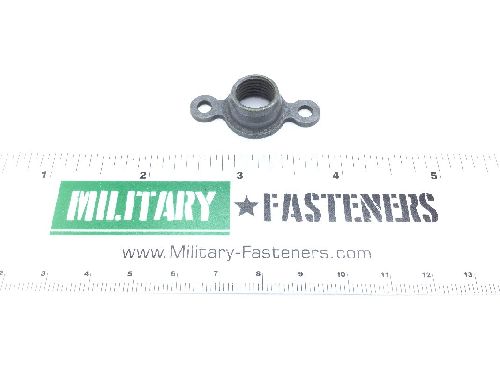

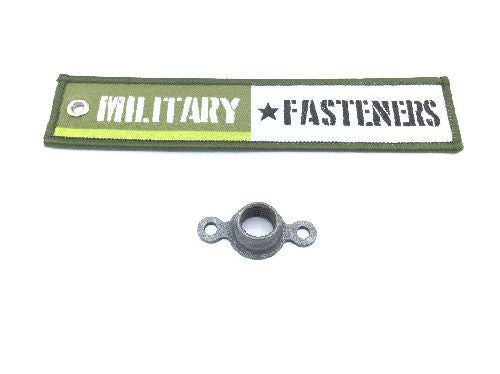

MS21047L7 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $45.66

Units per Pack 1

Price per Pack $45.66

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $45.66

Add item to quote

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.438 inches

Center To Center Distance Between Mounting Holes Along Length: Between 1.123 inches and 1.127 inches
Counterbore Diameter: 0.442 inches nut
Distance From Aperture Center To Mounting Hole Center: Between 0.557 inches and 0.567 inches
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.161 inches and 0.166 inches
Nut Counterbore Depth: 0.062 inches nut
Nut Height: 0.390 inches
Nut Length: 1.477 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.085 inches
Plate Width: Between 0.695 inches and 0.726 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Lubrication: Dry film lubricant
