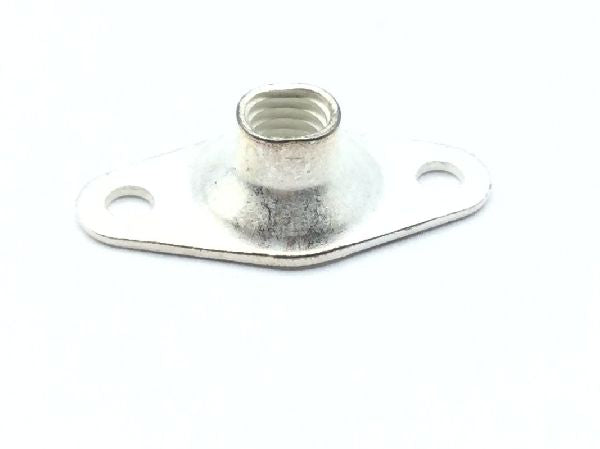

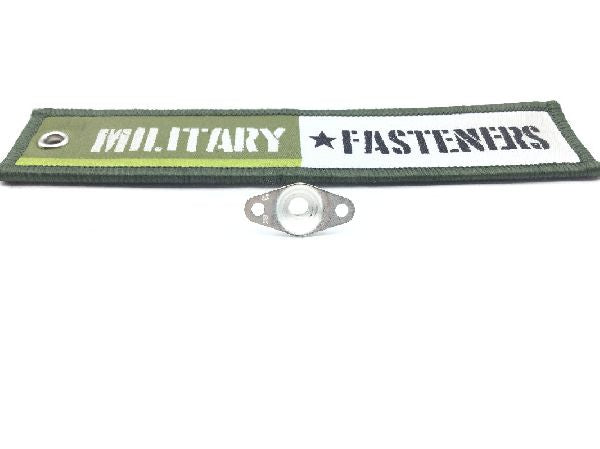

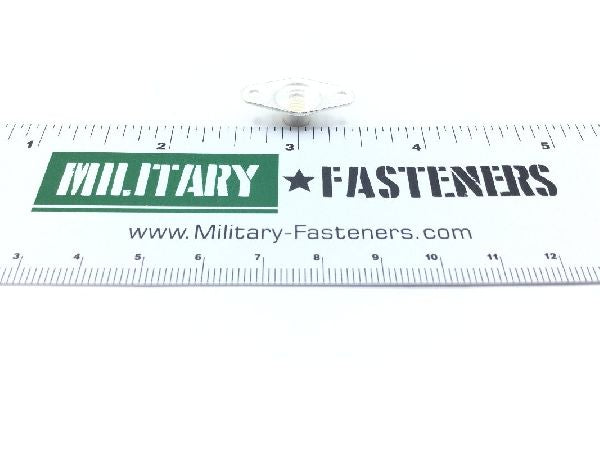

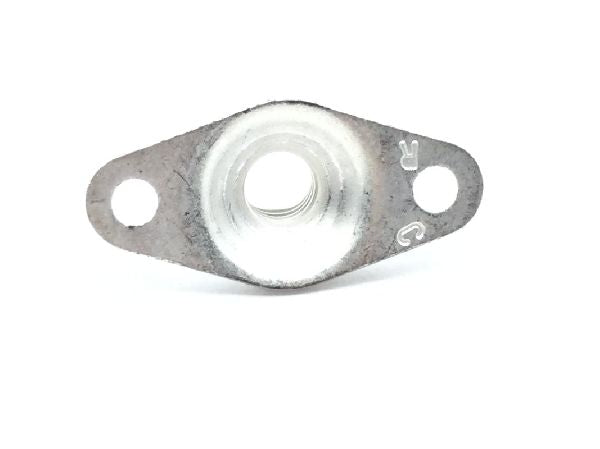

MS21050-3 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $4.16

Units per Pack 10

Price per Pack $41.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.60

Add item to quote

Material

Iron alloy 660

Surface Treatment

Ams 2410 assn standard single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.686 inches and 0.690 inches
Countersink Angle: 99 degrees and 101 degrees
Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches
Hardness Rating: 49.0 rockwell
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5732 assn standard single material response or ams 5737 assn standard single material response or ams 5525 assn standard single material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.281 inches
Nut Length: 0.948 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.047 inches
Plate Width: Between 0.406 inches and 0.453 inches
Precious Material: Silver
Tempurature Rating: 800 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
