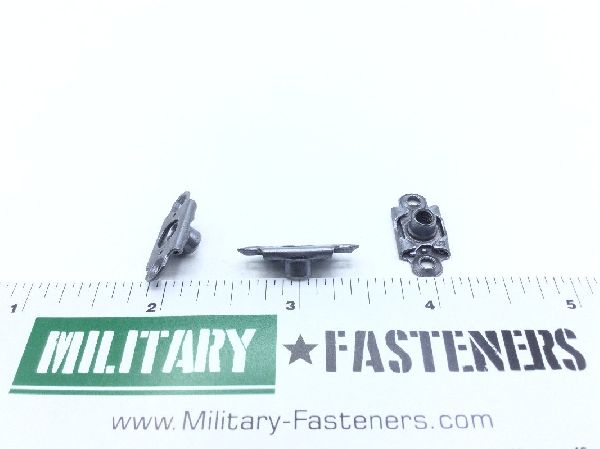

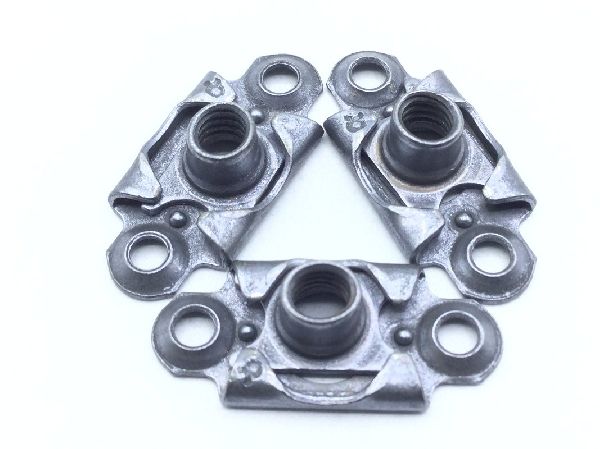

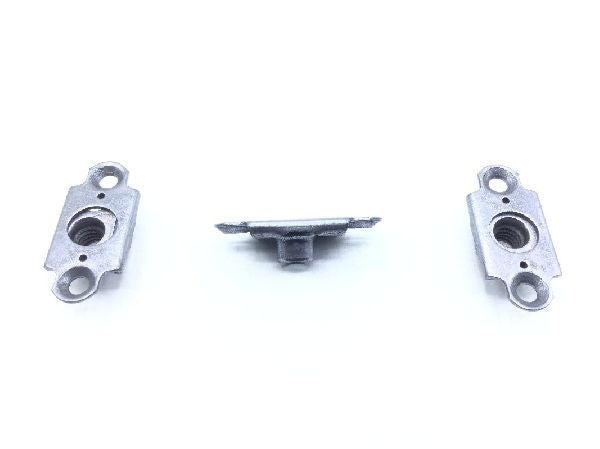

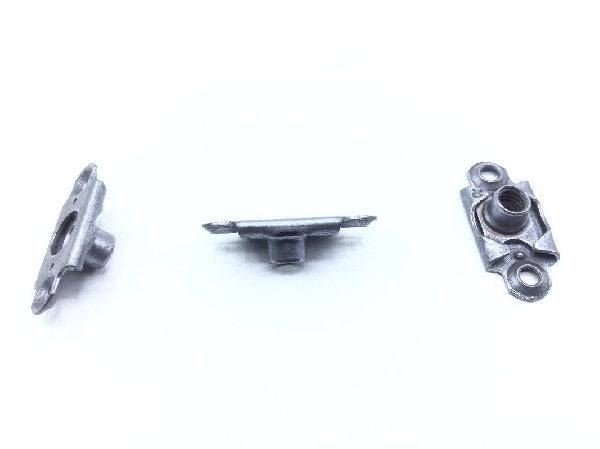

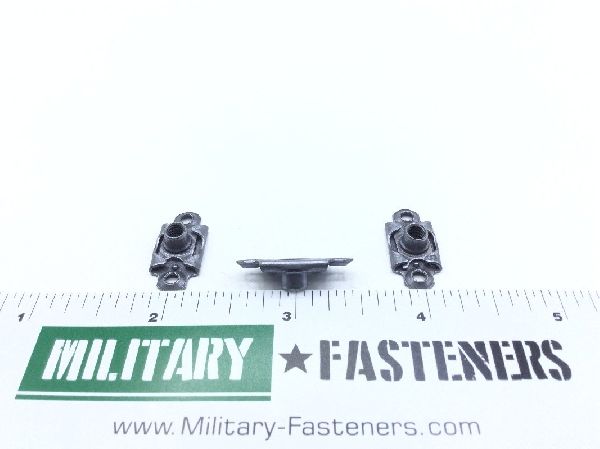

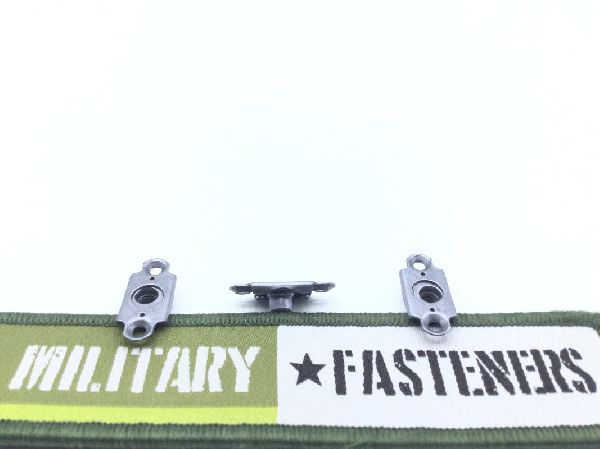

MS21059L08K Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjc

Thread Size

0.164 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.686 inches and 0.690 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Countersink Angle: Between 98.0 degrees and 102.0 degrees
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Mounting Provision Location: Opposite nut projection side
Nut Height: 0.250 inches
Nut Length: 0.948 inches
Nut Mounting Provision: Countersunk holes
Nut Style: Plate
Plate Thickness: 0.032 inches
Plate Width: Between 0.290 inches and 0.416 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
