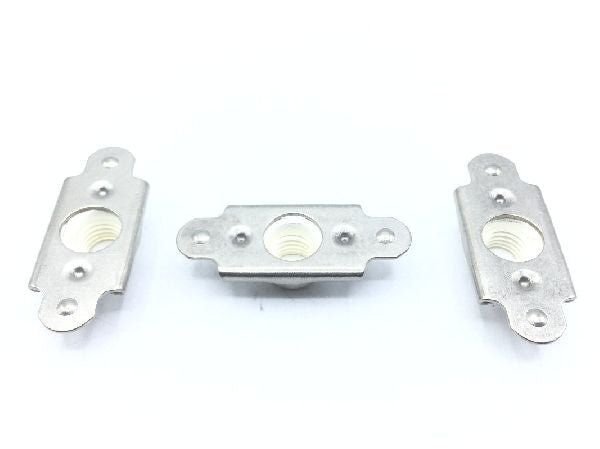

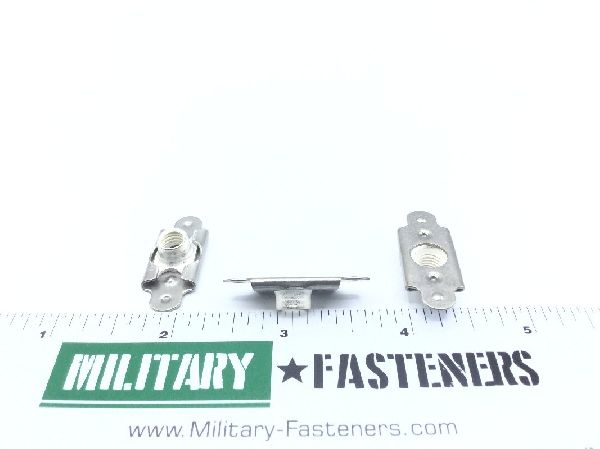

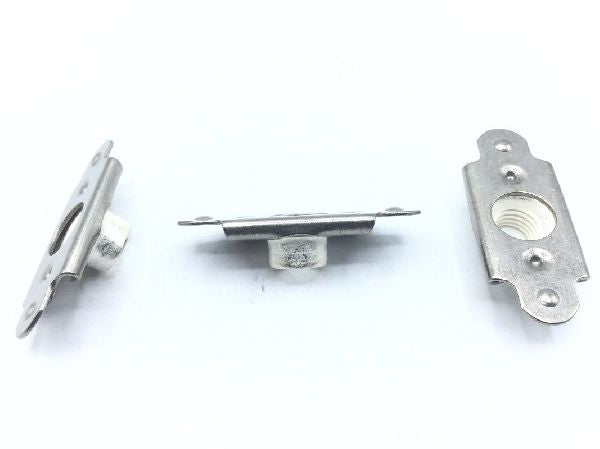

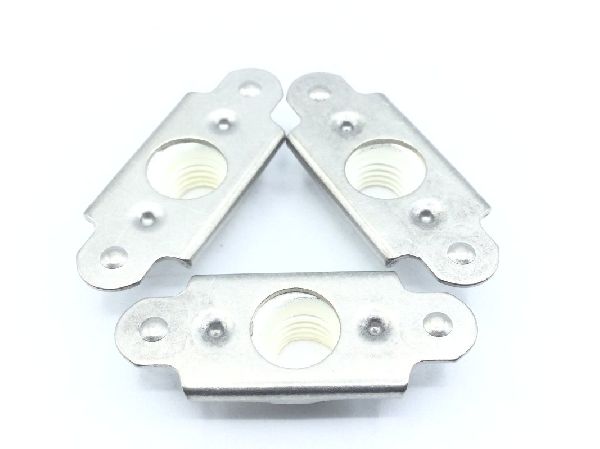

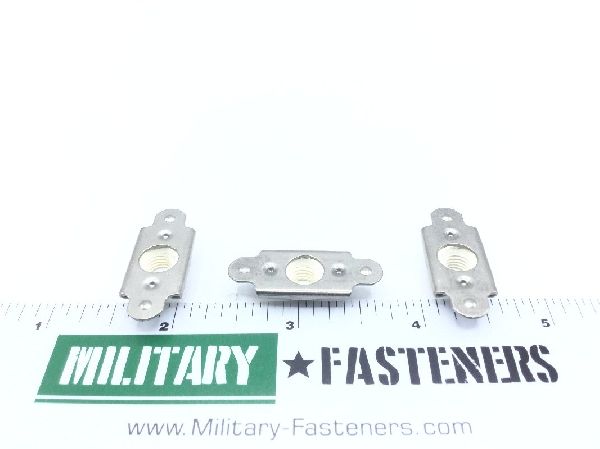

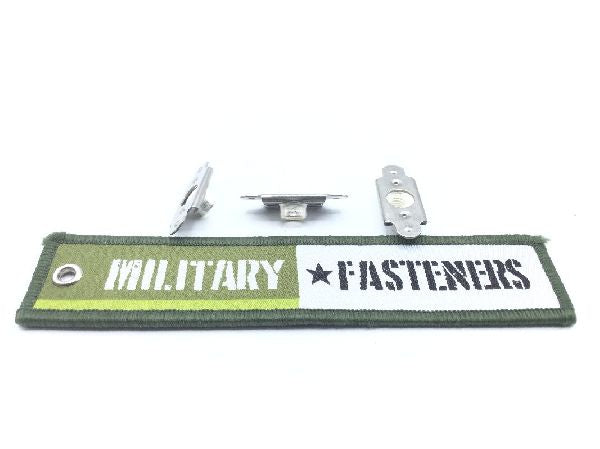

MS21060-4W Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $11.43

Units per Pack 5

Price per Pack $57.15

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $57.15

Add item to quote

Material

Iron alloy 660

Surface Treatment

Ams 2410 assn standard single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5735 assn standard single material response or ams 5737 assn standard single material response or ams 5525 assn standard single material response
Mounting Provision Location: Opposite nut projection side
Nut Height: 0.281 inches
Nut Length: 1.292 inches
Nut Mounting Provision: Welding projections
Nut Style: Plate
Plate Thickness: 0.032 inches
Plate Width: 0.350 inches
Precious Material: Silver
Tempurature Rating: 800.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Welding Projection Quantity: 2
