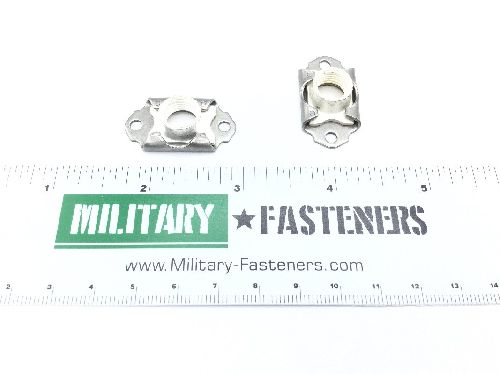

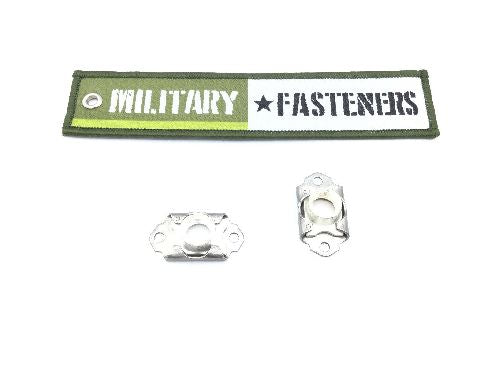

MS21060-6 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Surface Treatment

Ams 2410 assn standard single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.375 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.998 inches and 1.002 inches
Counterbore Diameter: 0.435 inches nut and 0.455 inches nut
Distance From Aperture Center To Mounting Hole Center: Between 0.495 inches and 0.505 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response or ams 5735 assn standard single material response or ams 5737 assn standard single material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.130 inches and 0.135 inches
Nut Counterbore Depth: 0.055 inches nut
Nut Height: 0.344 inches
Nut Length: 1.292 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.055 inches
Plate Width: Between 0.475 inches and 0.680 inches
Precious Material: Silver
Tempurature Rating: 800.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
