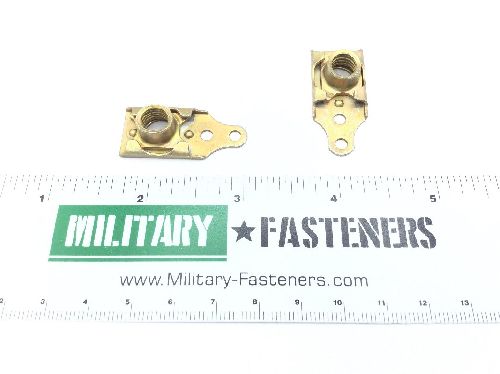

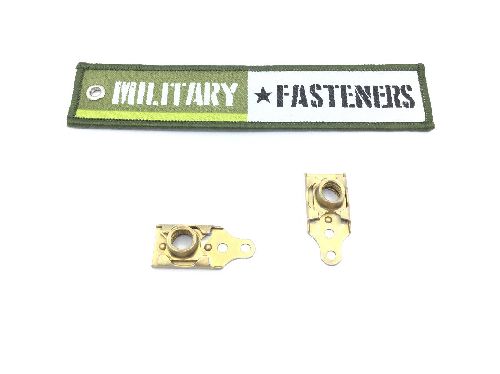

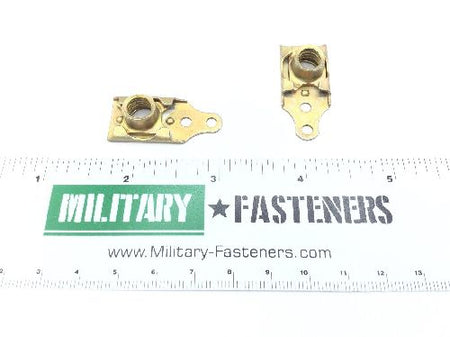

MS21061-5 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Center To Center Distance Between Mounting Holes Along Length: Between 0.310 inches and 0.314 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.495 inches and 0.505 inches
Locking Feature: Prevailing torque all metal design
Mounting Hole Diameter: Between 0.130 inches and 0.135 inches
Nut Height: 0.328 inches
Nut Length: 1.396 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.045 inches
Plate Width: Between 0.412 inches and 0.641 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
