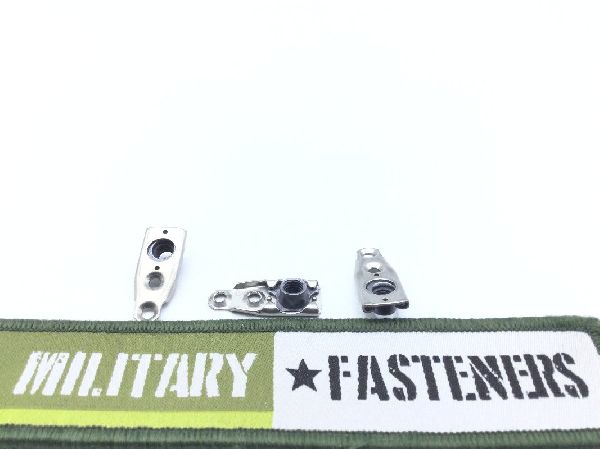

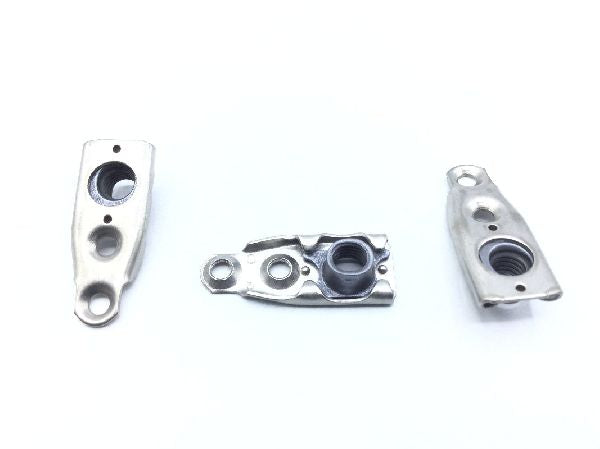

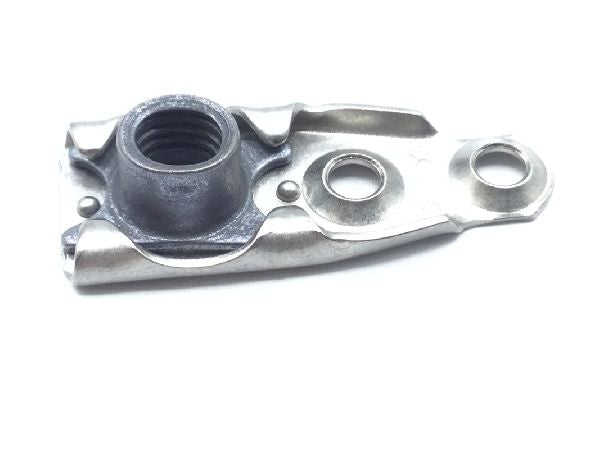

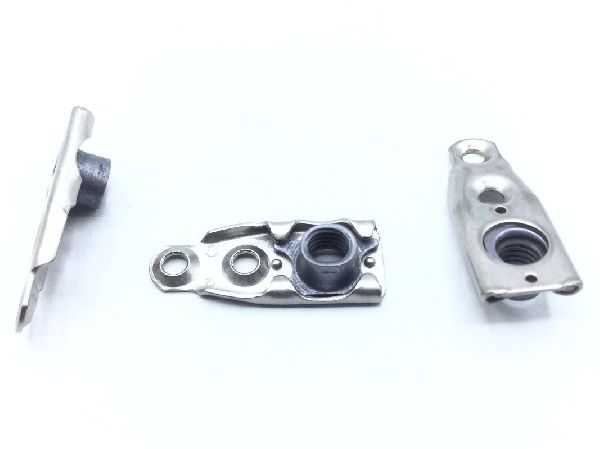

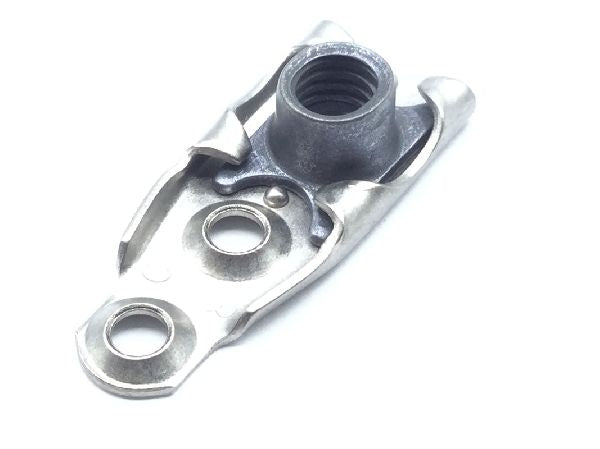

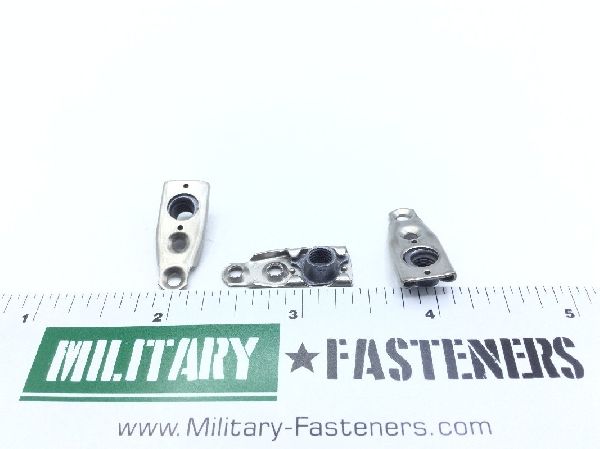

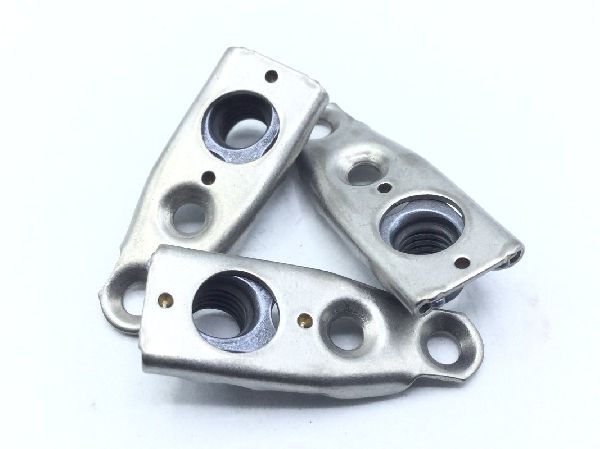

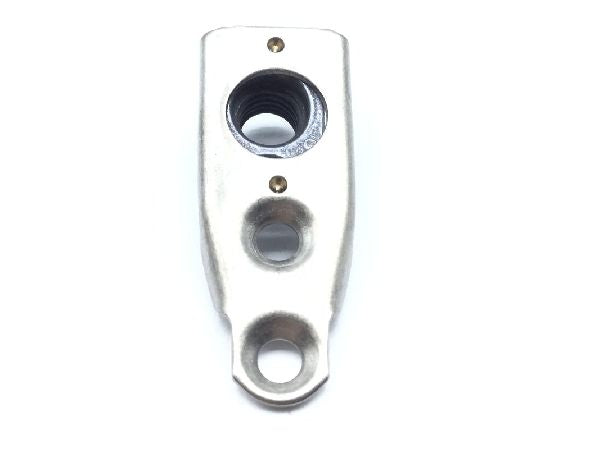

MS21062L3K Locknut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.310 inches and 0.314 inches
Counterbore Diameter: 0.194 inches nut
Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Ams5525 assn standard single material response or ams5735 assn standard single material response or ams5737 assn standard single material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Countersink Angle: Between 98.0 degrees and 102.0 degrees
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Mounting Provision Location: Opposite nut projection side
Nut Counterbore Depth: 0.062 inches nut
Nut Height: 0.250 inches
Nut Length: 1.051 inches
Nut Mounting Provision: Countersunk holes
Nut Style: Plate
Plate Thickness: 0.032 inches
Plate Width: Between 0.290 inches and 0.422 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
