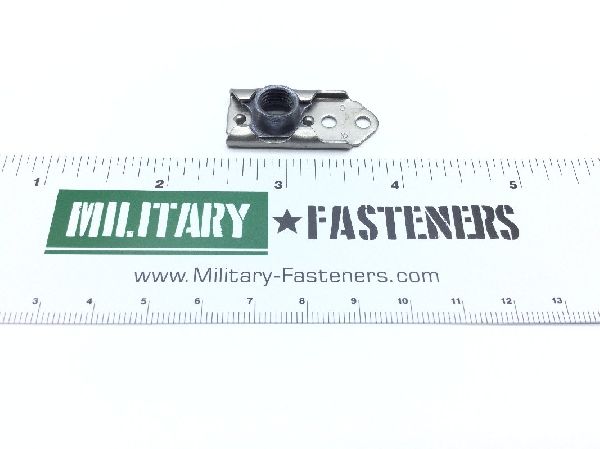

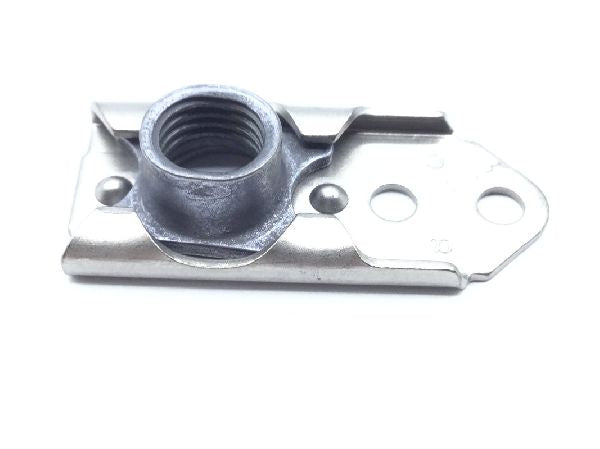

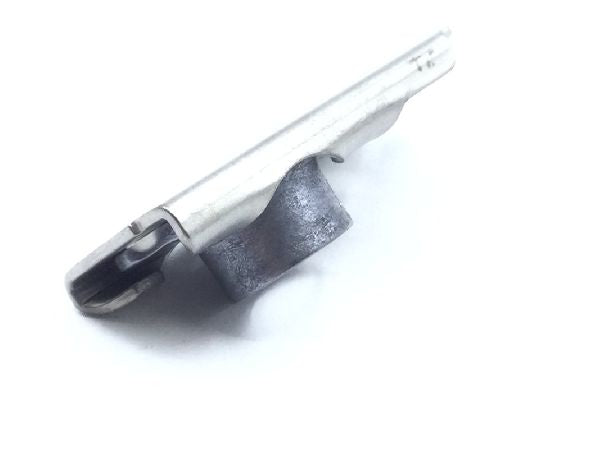

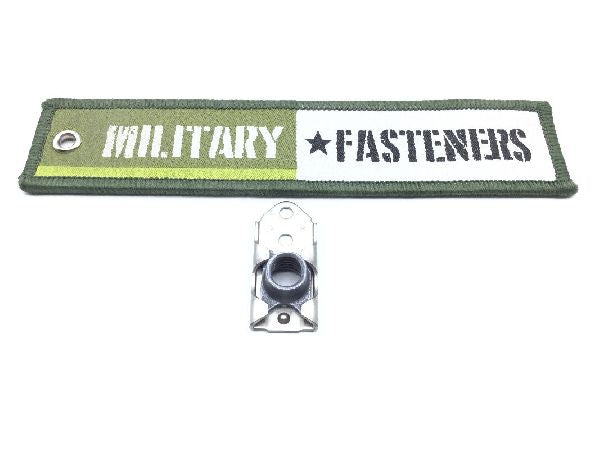

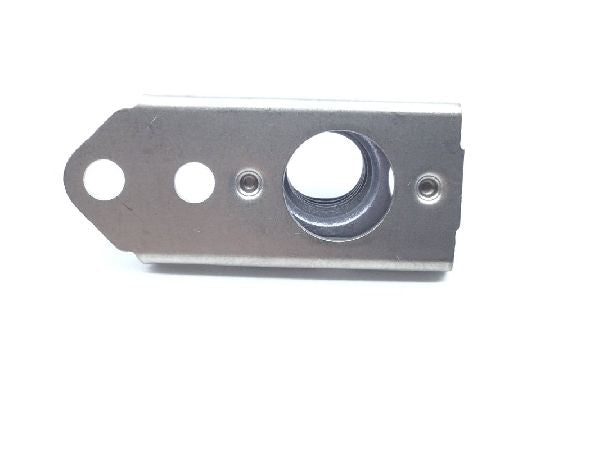

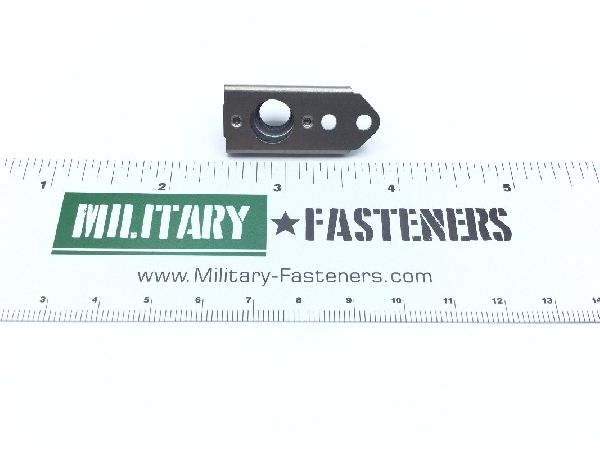

MS21062L5 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $13.17

Units per Pack 5

Price per Pack $65.85

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $65.85

Add item to quote

Thread Class

Center To Center Distance Between Mounting Holes Along Length: Between 0.310 inches and 0.314 inches
Counterbore Diameter: 0.062 inches nut
Distance From Aperture Center To Mounting Hole Center: Between 0.495 inches and 0.505 inches
Locking Feature: Prevailing torque all metal design
Mounting Hole Diameter: Between 0.130 inches and 0.135 inches
Nut Counterbore Depth: 0.317 inches nut
Nut Height: 0.328 inches
Nut Length: 1.396 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.045 inches
Plate Width: Between 0.412 inches and 0.641 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Lubrication: Dry film lubricant
