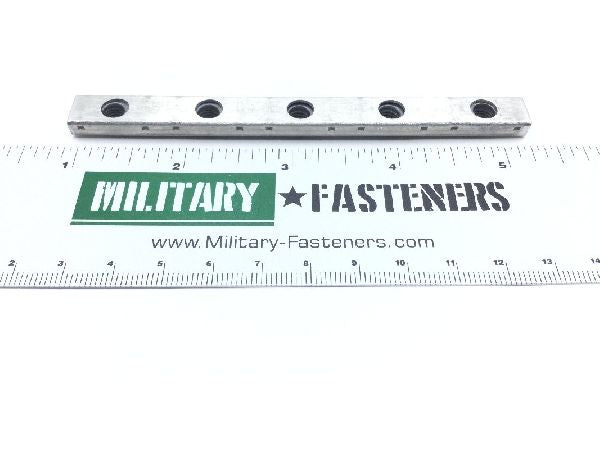

MS21063L3-7-5 Self-Locking Gang Channel Nut Assembly

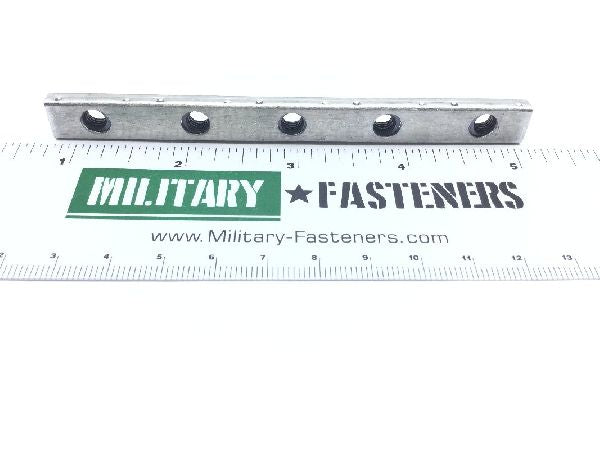

MS21063L3-7-5 Self-Locking Gang Channel Nut Assembly (2)

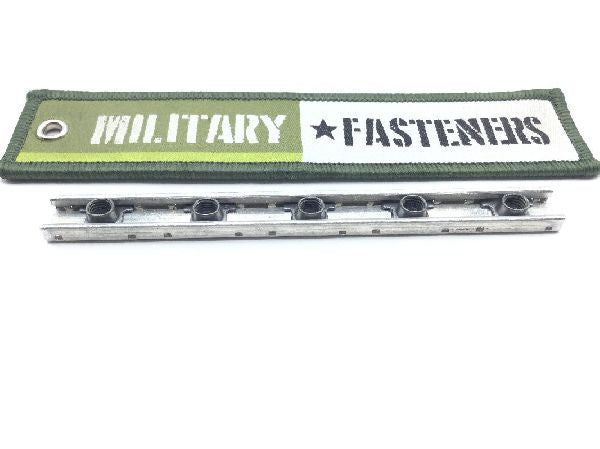

MS21063L3-7-5 Self-Locking Gang Channel Nut Assembly (3)

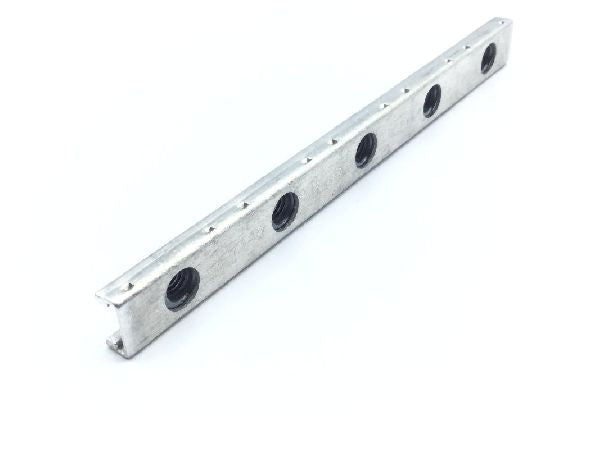

MS21063L3-7-5 Self-Locking Gang Channel Nut Assembly (4)

MS21063L3-7-5 Self-Locking Gang Channel Nut Assembly (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21063L3-7-5 Self-Locking Gang Channel Nut Assembly

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $53.98

Units per Pack 1

Price per Pack $53.98

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $53.98

Add item to quote

Material

Aluminum alloy channel

Overall Length

4.312 inches

Surface Treatment

Qq-p-416 federal specification single treatment response nut

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Assemblyheight: 0.250 inches
Channel Height: 0.250 inches
Channel Style: Straight type
Counterbore Diameter: 0.194 inches nut
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Nut Counterbore Depth: 0.027 inches nut
Nut Quantity: 5
Nut Spacing: 0.875 inches
Nut Style: Self locking gang channel
Overall Width: 0.416 inches
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
