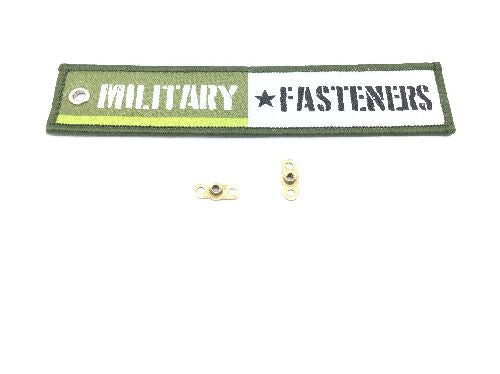

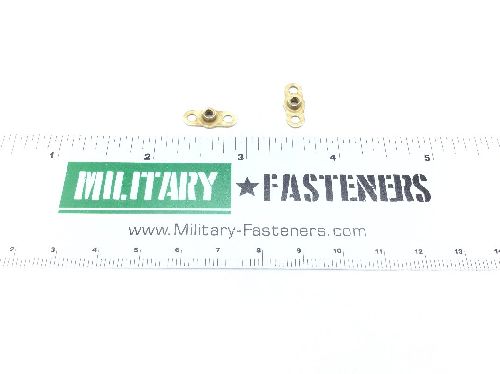

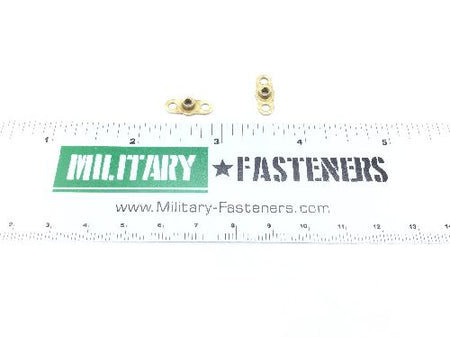

MS21069-04 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $2.52

Units per Pack 20

Price per Pack $50.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $50.40

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjc

Thread Size

0.112 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.404 inches and 0.408 inches
Distance From Aperture Center To Mounting Hole Center: 0.203 inches
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.143 inches
Nut Length: 0.630 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.040 inches
Plate Width: Between 0.140 inches and 0.260 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
Lubrication: Soluble lubricant
