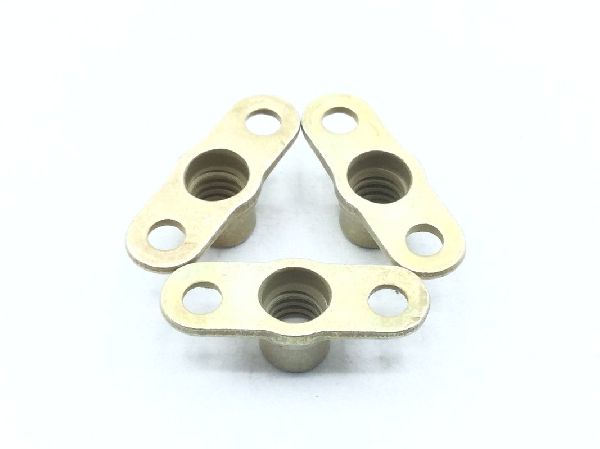

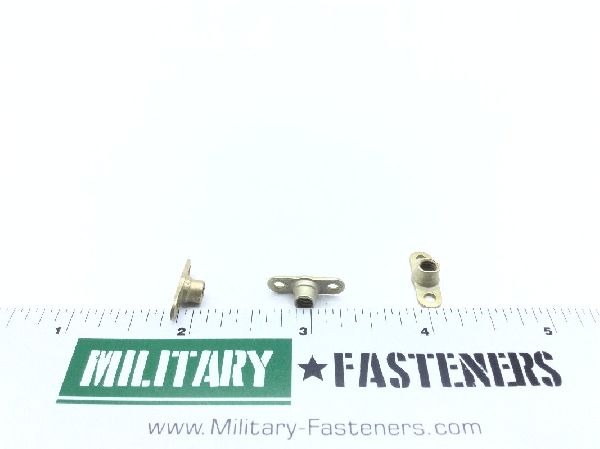

MS21069-08 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.164 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.466 inches and 0.470 inches
Counterbore Diameter: 0.168 inches nut
Distance From Aperture Center To Mounting Hole Center: Between 0.229 inches and 0.239 inches
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Counterbore Depth: 0.062 inches nut
Nut Height: 0.205 inches
Nut Length: 0.692 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.037 inches
Plate Width: 0.255 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
