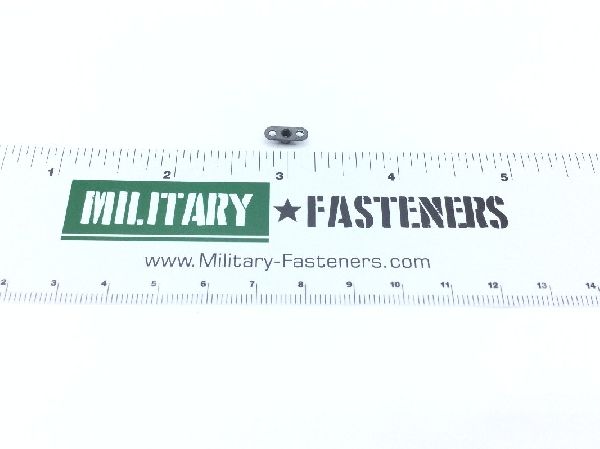

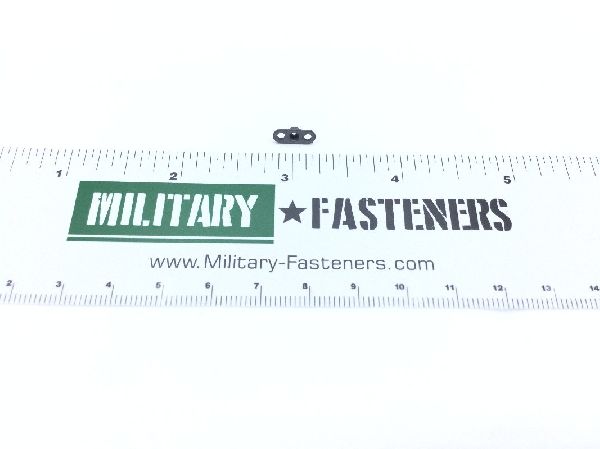

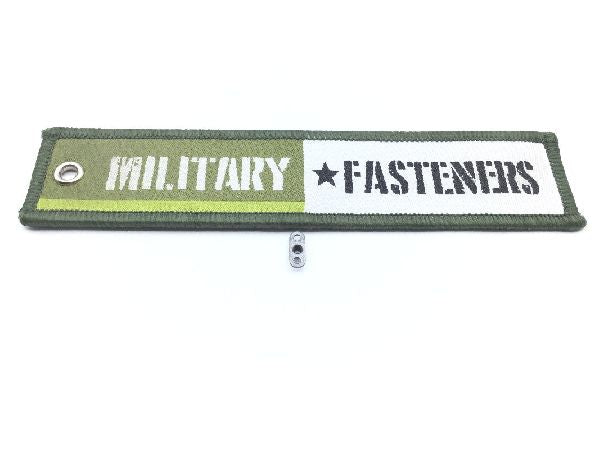

MS21069L02 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.84

Units per Pack 25

Price per Pack $46.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $46.00

Add item to quote

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

Thread Series

Unjc

Thread Size

0.086 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.248 inches and 0.252 inches
Distance From Aperture Center To Mounting Hole Center: 0.125 inches
Hardness Rating: 49 rockwell
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.066 inches and 0.071 inches
Nut Height: 0.11 inches
Nut Length: 0.41 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.035 inches
Plate Width: Between 0.14 inches and 0.162 inches
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 56
Lubrication: Dry film lubricant
