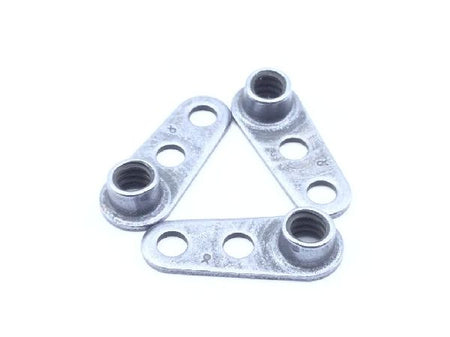

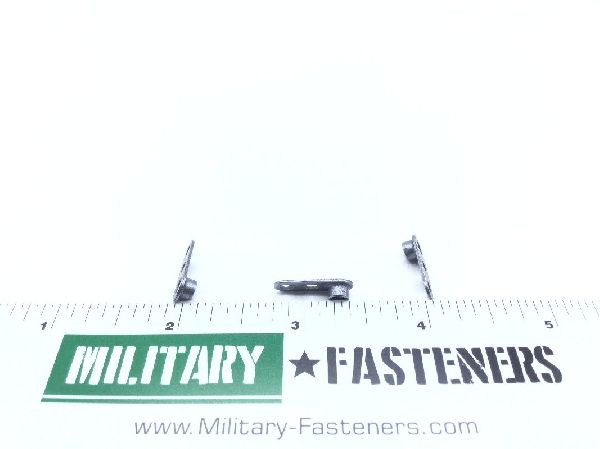

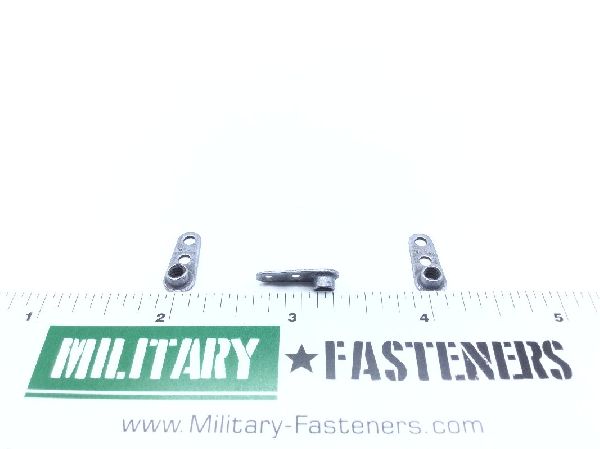

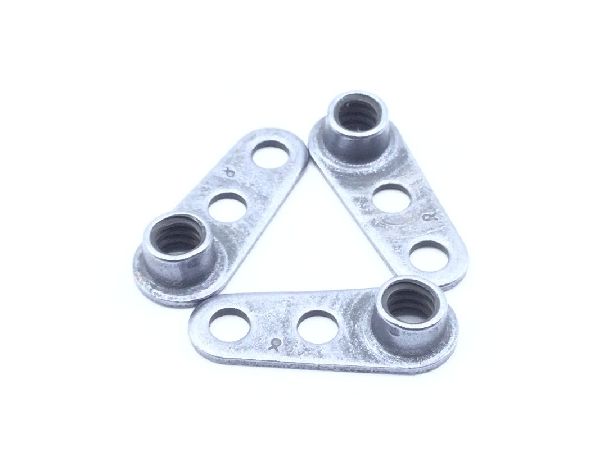

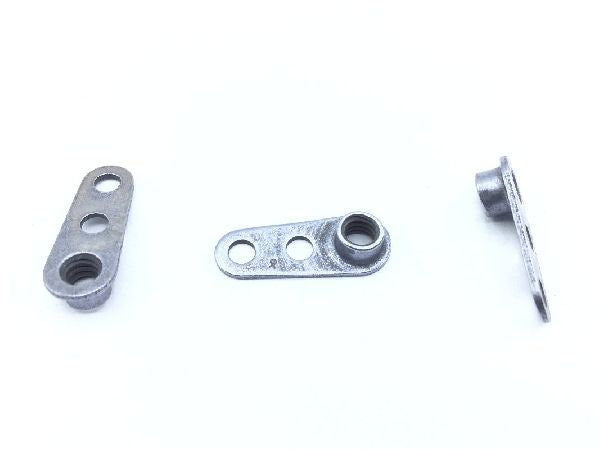

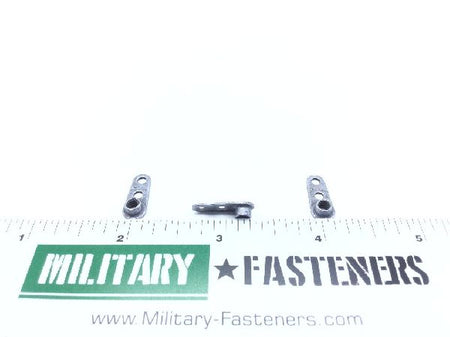

MS21071L06 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjc

Thread Size

0.138 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.217 inches and 0.221 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.213 inches and 0.223 inches
Hardness Rating: 49.0 rockwell c
Height: 0.171 inches
Length: 0.684 inches
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Mounting Provision: Straight holes
Plate Thickness: 0.047 inches
Plate Width: Between 0.195 inches and 0.265 inches
Style: Plate
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
