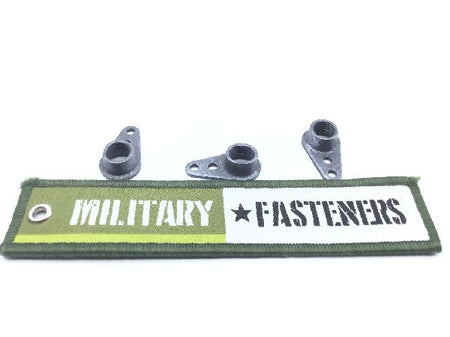

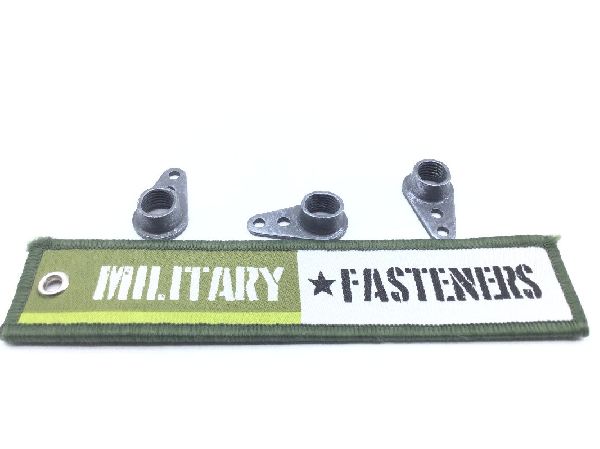

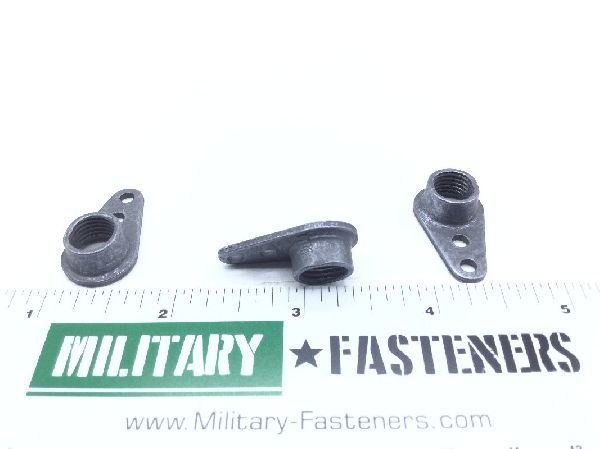

MS21071L6 Locknut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.23

Units per Pack 10

Price per Pack $42.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $42.30

Add item to quote

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.375 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.267 inches and 0.271 inches
Counterbore Diameter: 0.379 inches nut
Distance From Aperture Center To Mounting Hole Center: Between 0.409 inches and 0.419 inches
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.130 inches and 0.135 inches
Nut Counterbore Depth: 0.062 inches nut
Nut Height: 0.344 inches
Nut Length: 1.139 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.075 inches
Plate Width: Between 0.580 inches and 0.614 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Lubrication: Dry film lubricant
