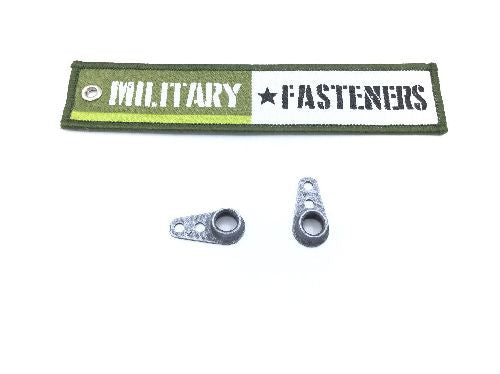

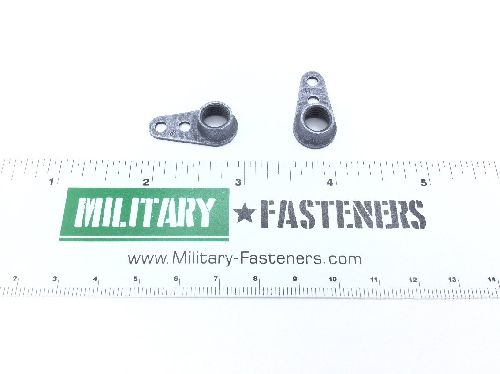

MS21072L5 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.312 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.267 inches and 0.271 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.354 inches and 0.364 inches
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5735 assn standard single material response or ams 5737 assn standard single material response or ams 5525 assn standard single material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.130 inches and 0.135 inches
Nut Height: 0.328 inches
Nut Length: 1.026 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.065 inches
Plate Width: Between 0.475 inches and 0.505 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Lubrication: Dry film lubricant
