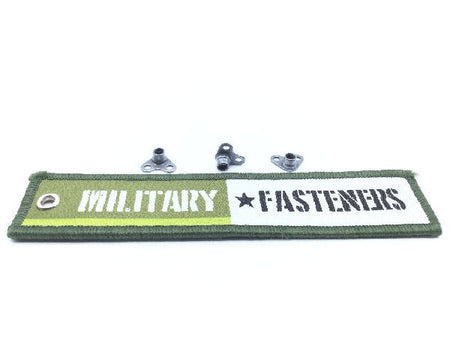

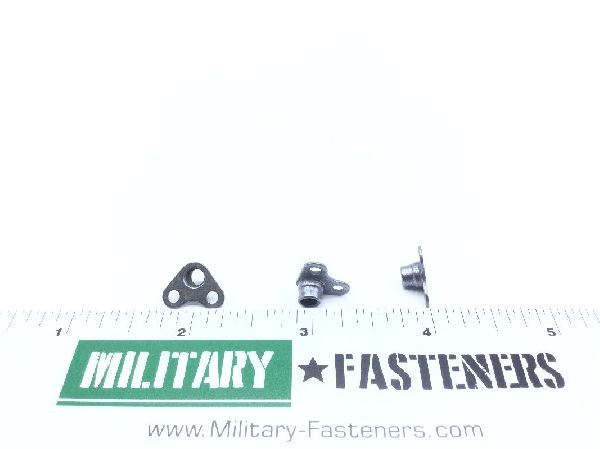

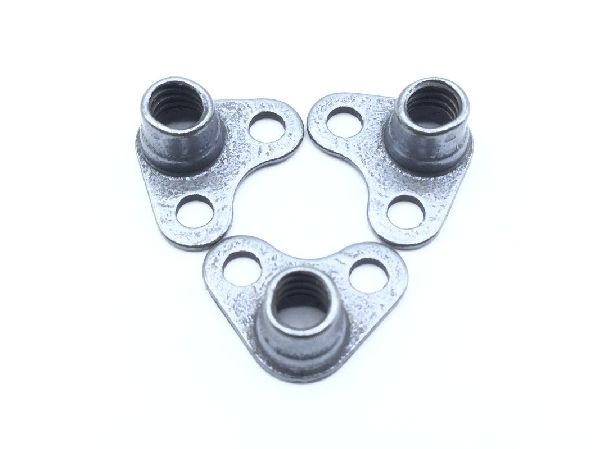

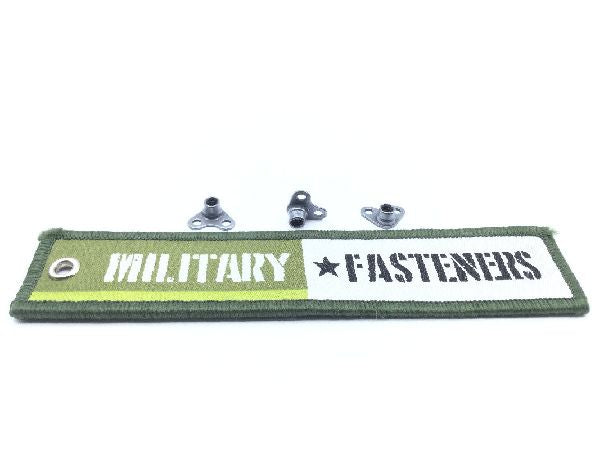

MS21073L08 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $3.30

Units per Pack 10

Price per Pack $33.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $33.00

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjc

Thread Size

0.164 inches

Distance From Aperture Center To Mounting Hole Center: Between 0.229 inches and 0.239 inches
Hardness Rating: 49 rockwell c
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.25 inches
Nut Length: 0.497 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.047 inches
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
