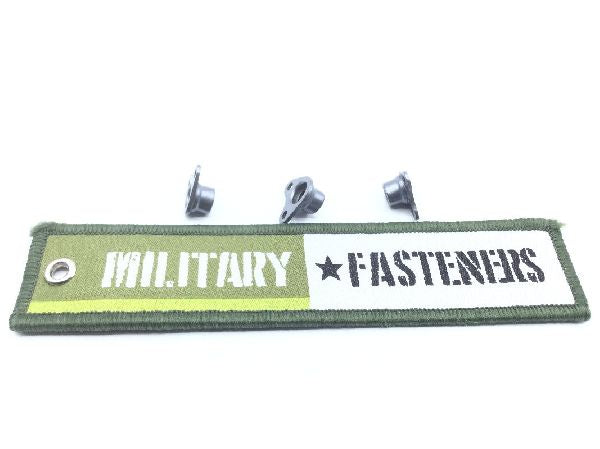

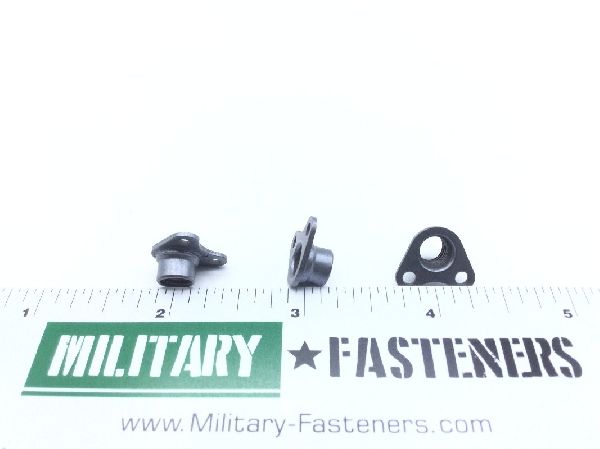

MS21074L4 Self-Locking Nutplate

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Distance From Aperture Center To Mounting Hole Center: Between 0.276 inches and 0.286 inches
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5735 assn standard single material response or ams 5737 assn standard single material response or ams 5525 assn standard single material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.281 inches
Nut Length: 0.603 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.055 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Lubrication: Dry film lubricant
