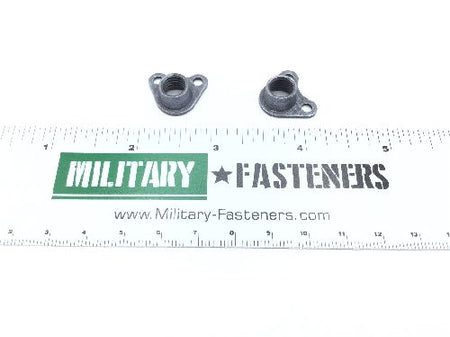

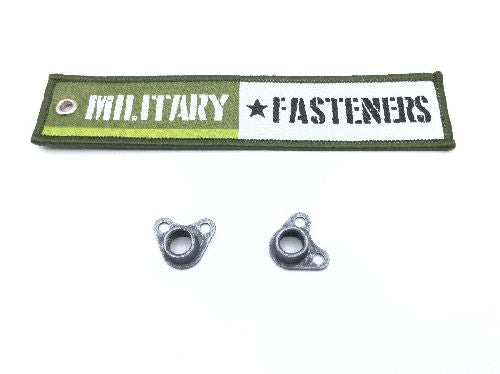

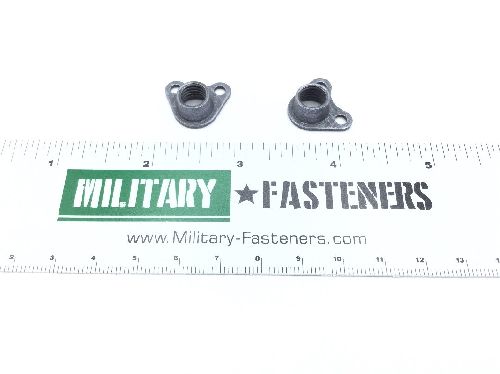

MS21074L5 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $11.84

Units per Pack 5

Price per Pack $59.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $59.20

Add item to quote

Material

Iron alloy 660

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.312 in

Distance From Aperture Center To Mounting Hole Center: Between 0.354 in and 0.364 in
Locking Feature: Prevailing torque all metal design
Material Specification: Ms 5525 assn standard single material response or ams 5535 assn standard 2nd material response or ams 5537 assn standard 3rd material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.130 in and 0.135 in
Nut Height: 0.328 in
Nut Length: 0.757 in
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.065 in
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Lubrication: Dry film lubricant
