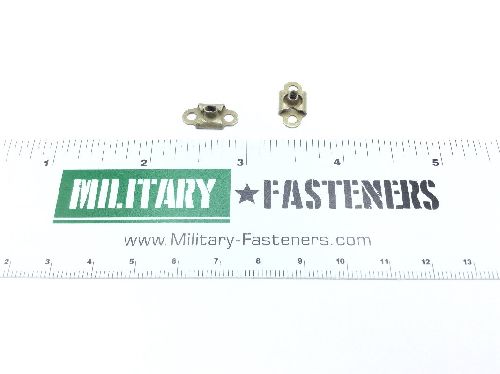

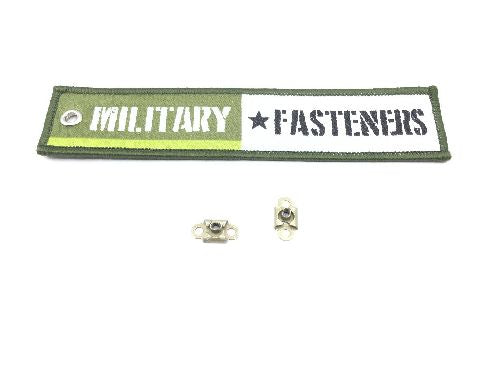

MS21075-04 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.47

Units per Pack 25

Price per Pack $36.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $36.75

Add item to quote

Material

Steel

Surface Treatment

Qq-p-416 type 2 class 2 federal specification single treatment response

Thread Class

Thread Series

Unjc

Thread Size

0.112 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.404 inches and 0.408 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.198 inches and 0.208 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 49 rockwell c
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.153 inches
Nut Length: 0.651 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: Between 0.016 inches and 0.090 inches
Plate Width: Between 0.275 inches and 0.315 inches
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
Lubrication: Soluble lubricant
