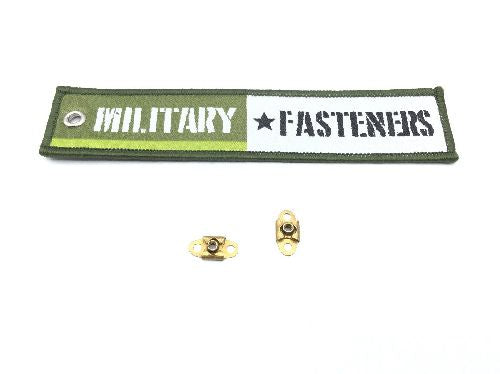

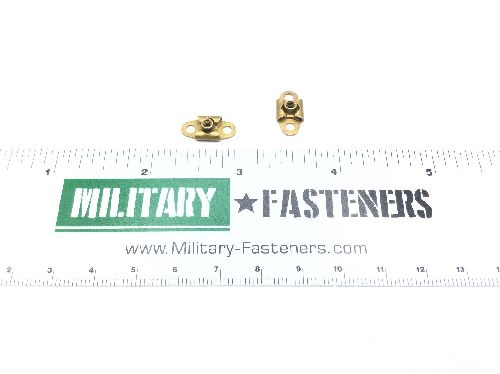

MS21075-04N Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp

Surface Treatment

Cl2 federal specification single treatment response ty2 qq-p-416

Thread Class

Thread Series

Unjc

Thread Size

0.112 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.406 inches and 0.408 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.203 inches and 0.208 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 49.0 rockwell
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.153 inches
Nut Length: 0.651 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: Between 0.016 inches and 0.090 inches
Plate Width: Between 0.275 inches and 0.315 inches
Special Features: W/o eyelets
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
