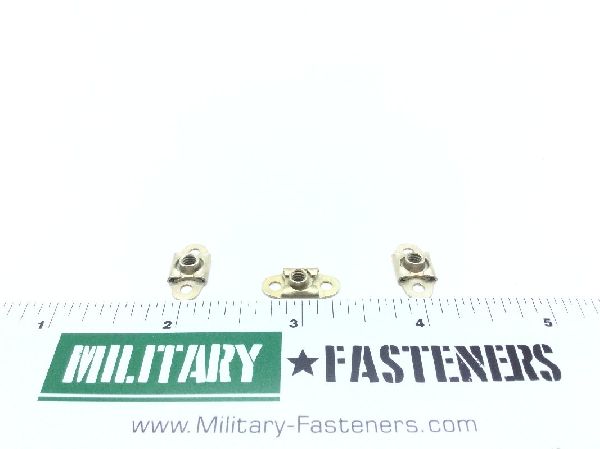

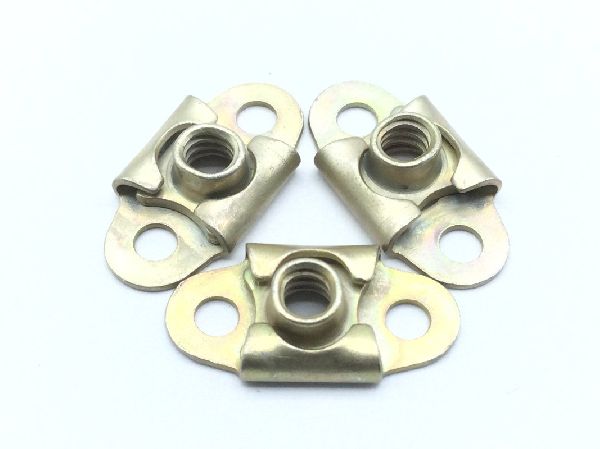

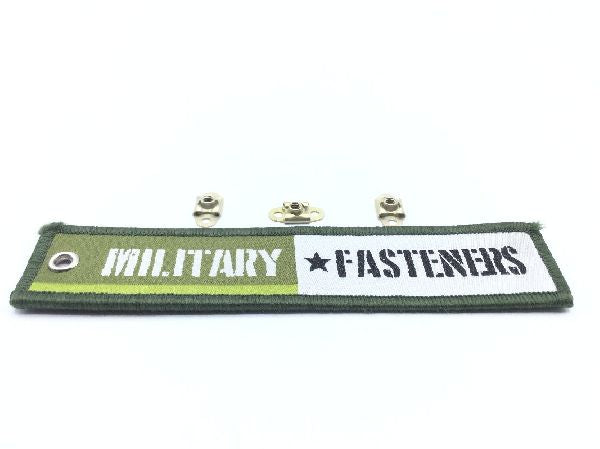

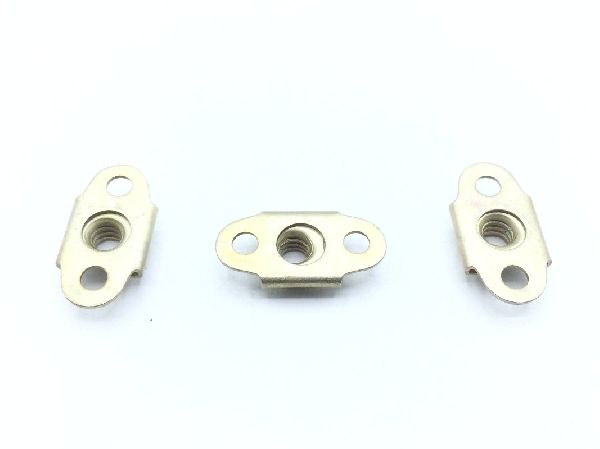

MS21075-06N Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $2.46

Units per Pack 20

Price per Pack $49.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $49.20

Add item to quote

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response qq-p-416 ty2

Thread Class

Thread Series

Unjc

Thread Size

0.138 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.435 inches and 0.439 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.213 inches and 0.223 inches
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.171 inches
Nut Length: 0.682 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate (floating)
Plate Thickness: Between 0.020 inches and 0.090 inches
Plate Width: Between 0.290 inches and 0.357 inches
Specification Data: 96906-ms21075 government standard
Tempurature Rating: 100.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
