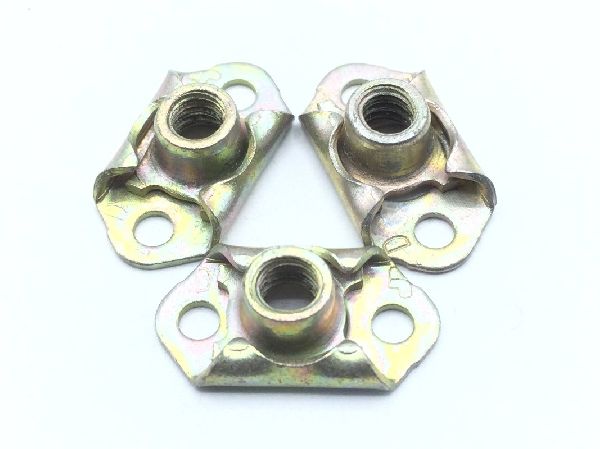

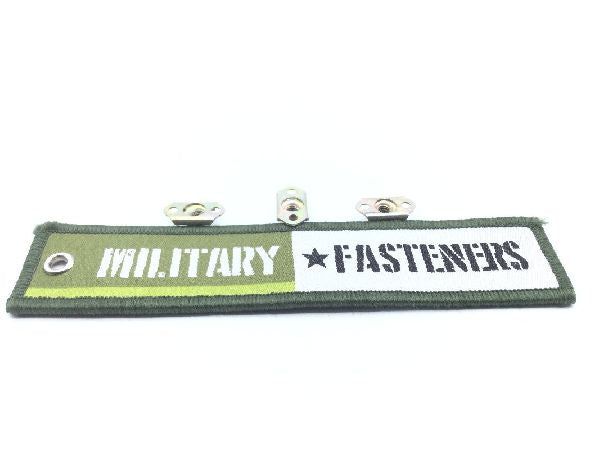

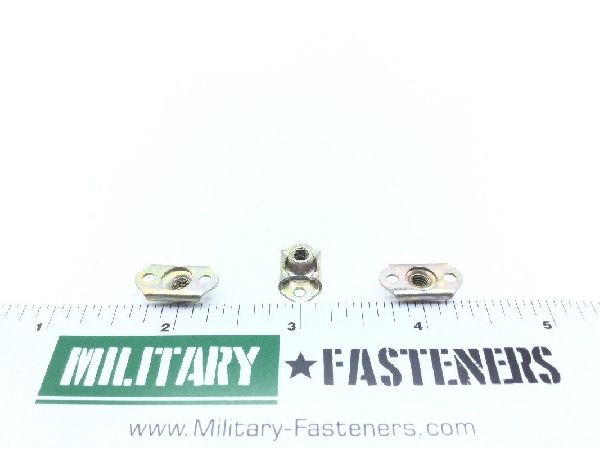

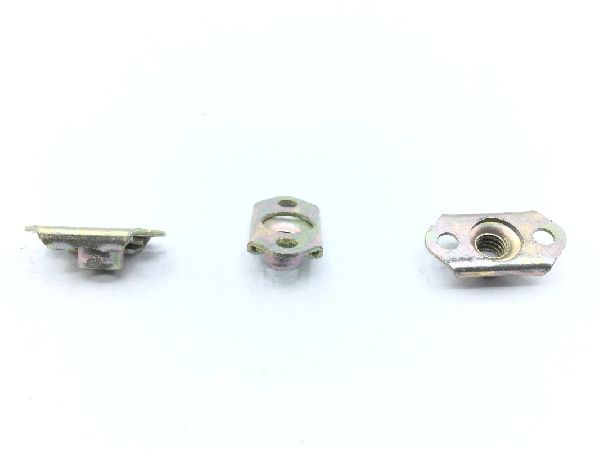

MS21075-08N Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.95

Units per Pack 25

Price per Pack $48.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $48.75

Add item to quote

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Quantity Per Inch (tpi)

Thread Series

Unjc

Thread Size

0.164 inches

Center To Center Distance Between Mounting Holes Along Length: 0.468 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.229 inches and 0.239 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.250 inches
Nut Length: 0.707 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: Between 0.025 inches and 0.090 inches
Plate Width: Between 0.290 inches and 0.367 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
