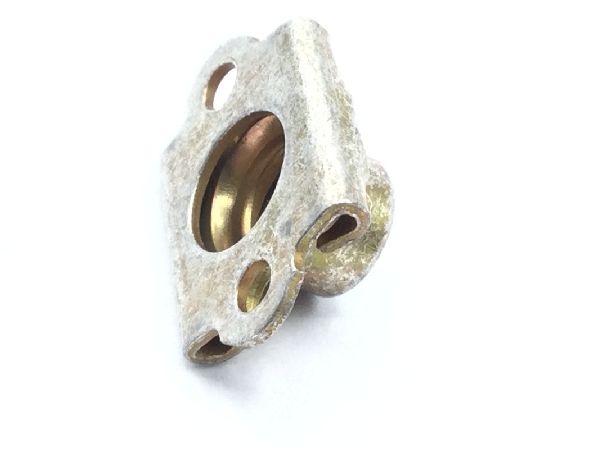

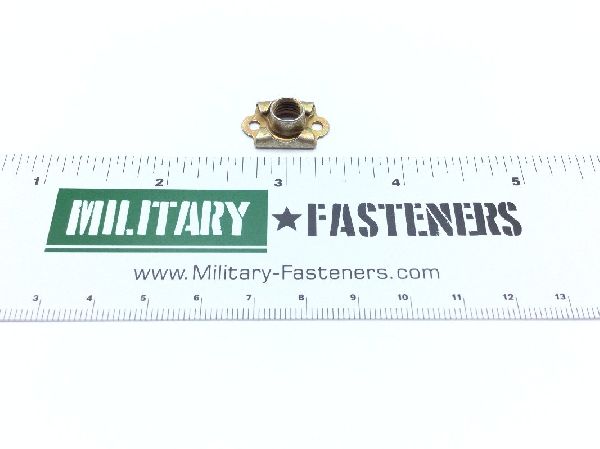

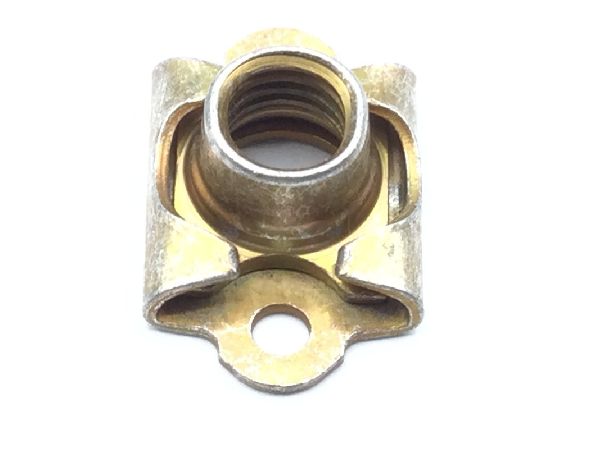

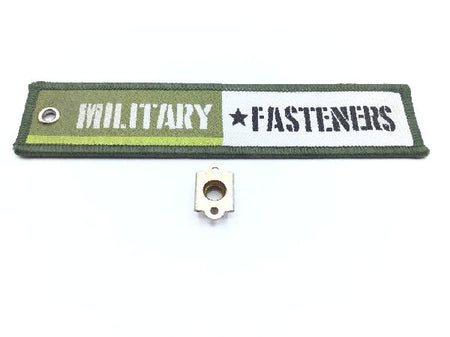

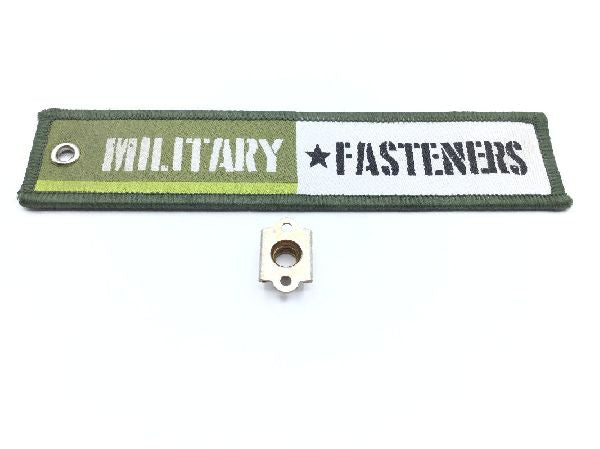

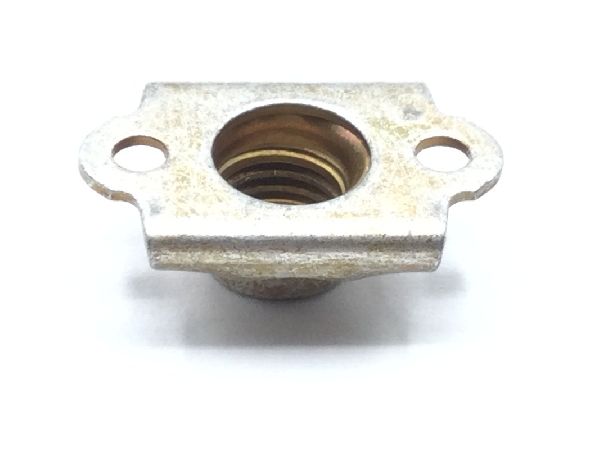

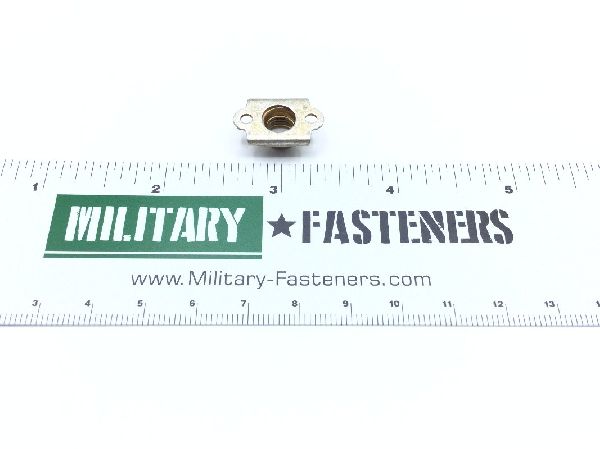

MS21075-4 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $1.94

Units per Pack 25

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.560 inches and 0.564 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.276 inches and 0.286 inches
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.281 inches
Nut Length: 0.801 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.140 inches
Plate Width: Between 0.350 inches and 0.500 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Lubrication: Soluble lubricant
