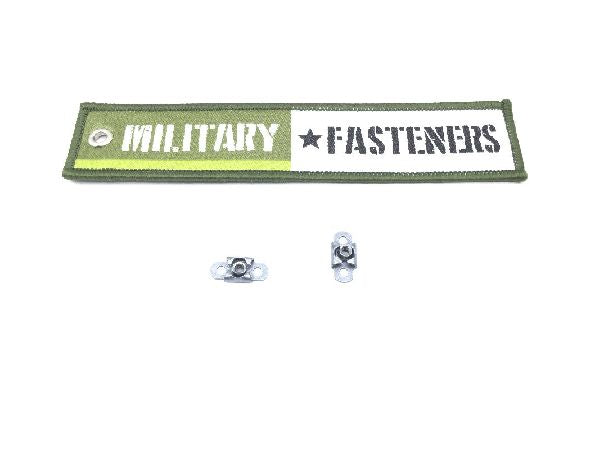

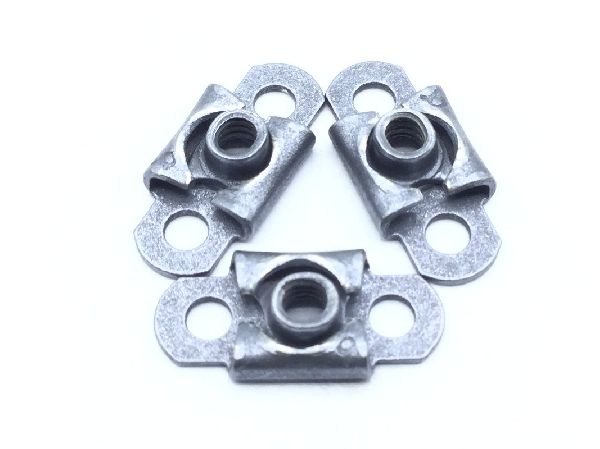

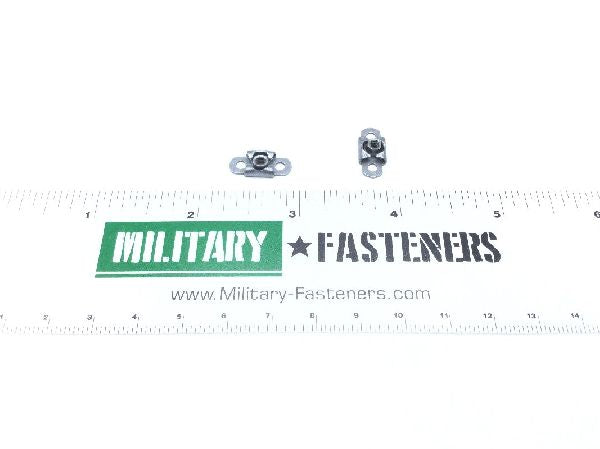

MS21075L04N Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.70

Units per Pack 25

Price per Pack $42.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $42.50

Add item to quote

Material

Steel comp 1035 or steel comp 1050 or steel comp 4130 or steel comp 1040 or steel comp 1042 or steel comp 4340 or steel comp 8740

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjc

Thread Size

0.112 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.404 inches and 0.408 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.198 inches and 0.208 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.153 inches
Nut Length: 0.651 inches
Nut Style: Plate
Plate Thickness: Between 0.016 inches and 0.090 inches
Plate Width: Between 0.275 inches and 0.315 inches
Special Features: Without eyelet
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
