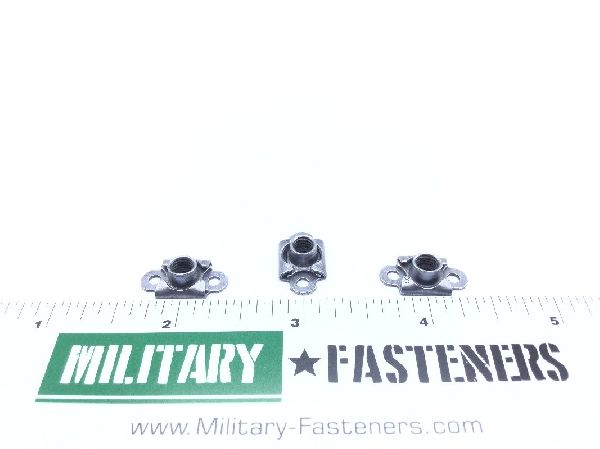

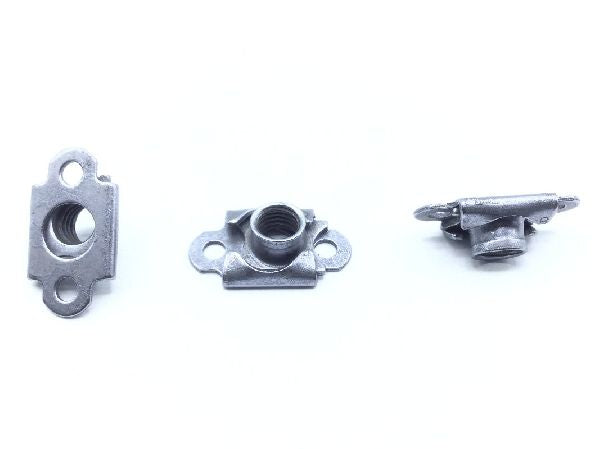

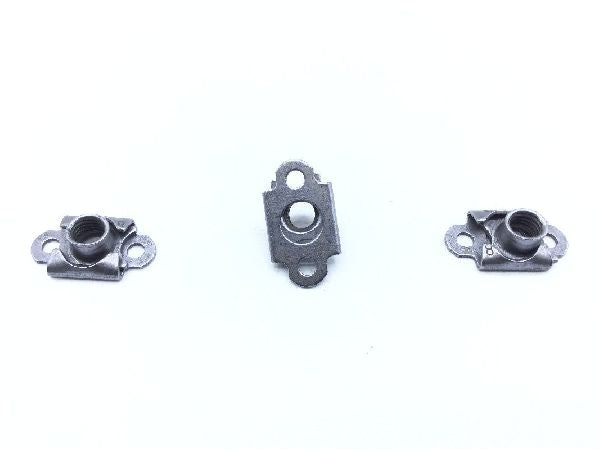

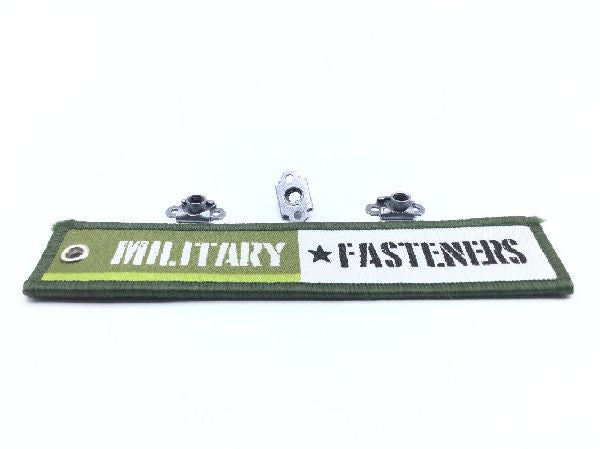

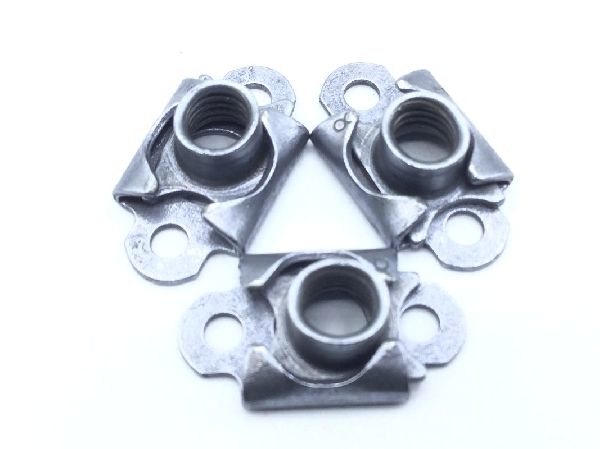

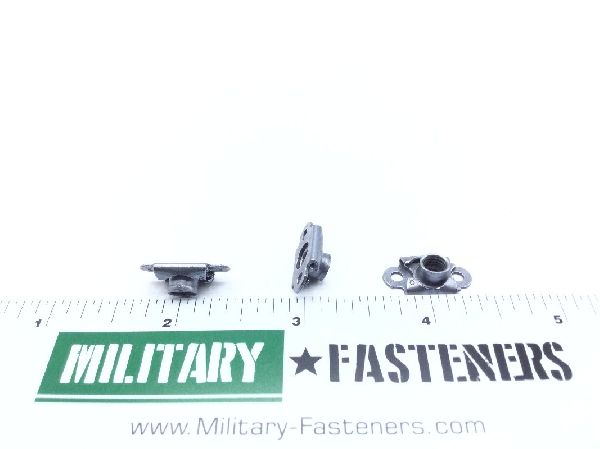

MS21075L3N Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.498 inches and 0.502 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.245 inches and 0.255 inches
Features: Floating nut
Features Provided: Floating nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5080 assn standard single material response or ams 6350 assn standard single material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.103 inches
Nut Height: 0.250 inches
Nut Length: 0.739 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: Between 0.025 inches and 0.090 inches
Plate Width: Between 0.290 inches and 0.416 inches
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Pitch Diameters: +0.1562 / +0.1697 inches
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
