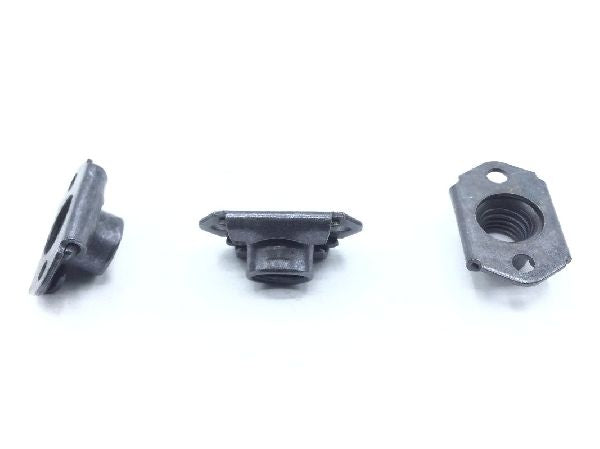

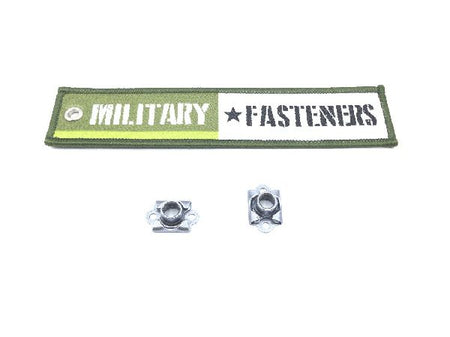

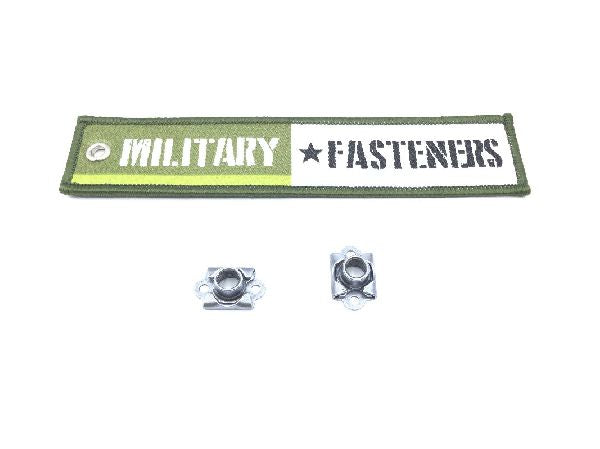

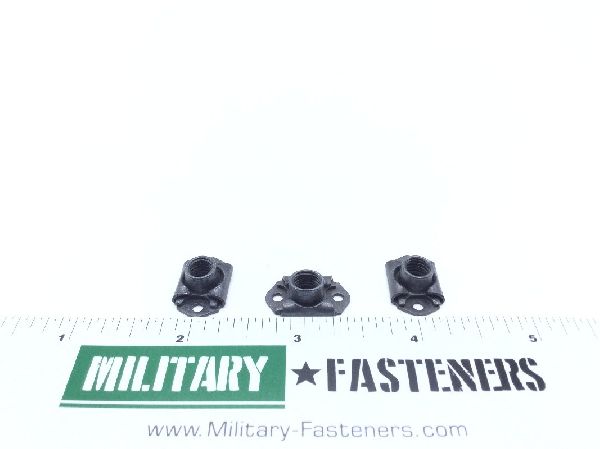

MS21075L4N Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $2.50

Units per Pack 25

Price per Pack $62.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $62.50

Add item to quote

Material

Steel comp 1035 or steel comp 4130 or steel comp 1060 or steel comp 1040 or steel comp 1042

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Center To Center Distance Between Mounting Holes Along Length: 0.286 inches
Counterbore Diameter: 0.254 inches nut
Distance From Aperture Center To Mounting Hole Center: 0.143 inches
Hardness Rating: 40.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Aams5080 assn standard 1st material response or aams 6350 assn standard 2nd material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.100 inches
Nut Height: 0.281 inches
Nut Length: 0.801 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate (floating)
Plate Thickness: Between 0.027 inches and 0.097 inches
Plate Width: Between 0.350 inches and 0.500 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Lubrication: Dry film lubricant
