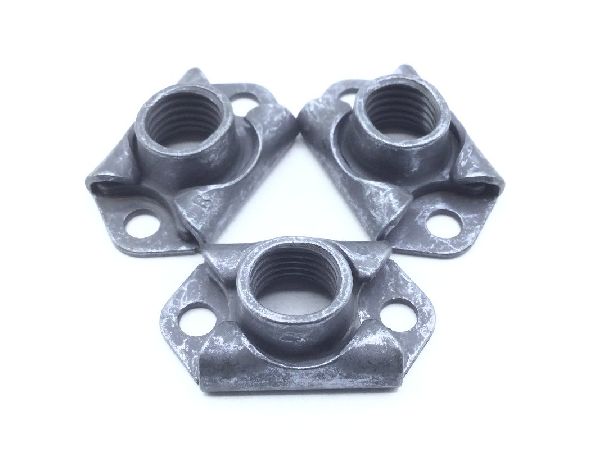

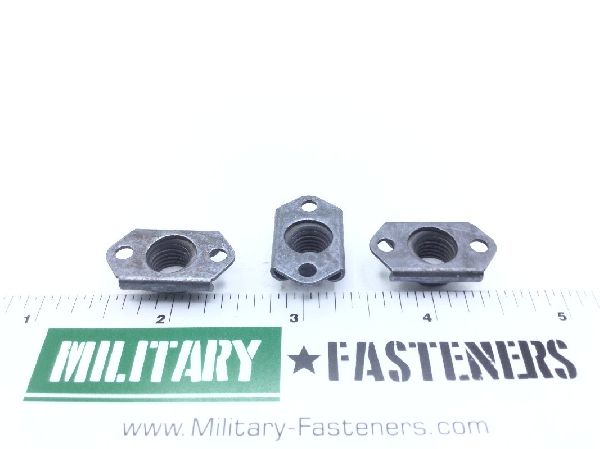

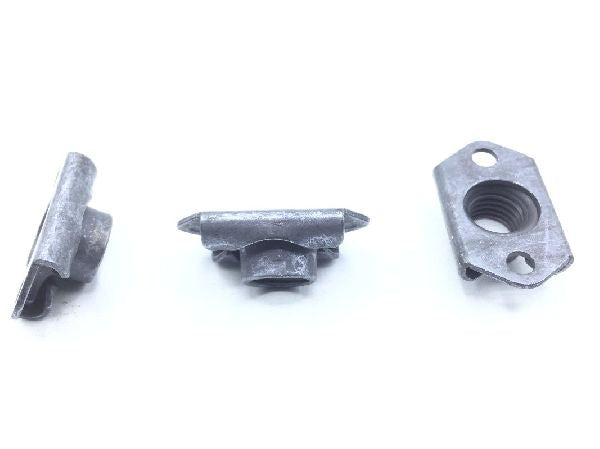

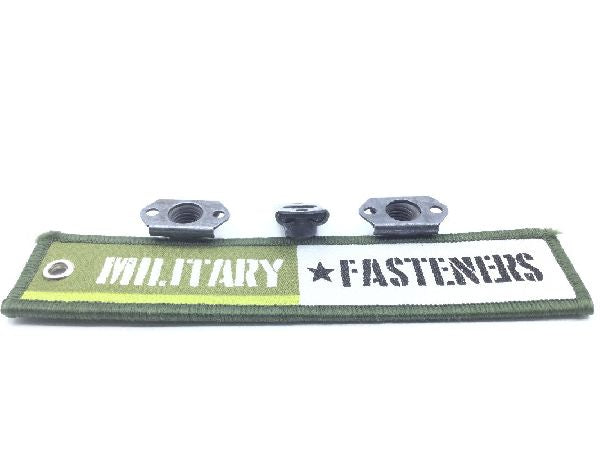

MS21075L5N Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.312 inches

Center To Center Distance Between Mounting Holes Along Length: 0.364 inches
Counterbore Diameter: 0.317 inches nut
Distance From Aperture Center To Mounting Hole Center: 0.182 inches
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Ams5080 assn standard 1st material response or ams6359 assn standard 2nd material response or ams6350 assn standard 3rd material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.117 inches
Nut Height: 0.718 inches
Nut Length: 1.010 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate (floating)
Plate Thickness: Between 0.032 inches and 0.105 inches
Plate Width: Between 0.412 inches and 0.581 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
