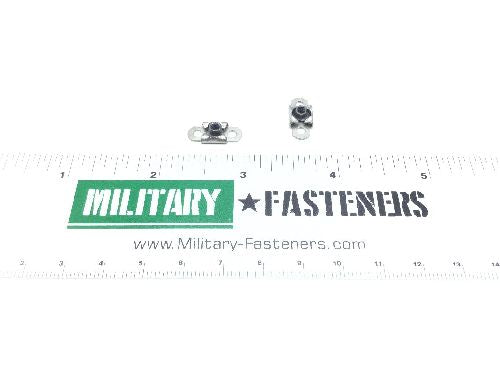

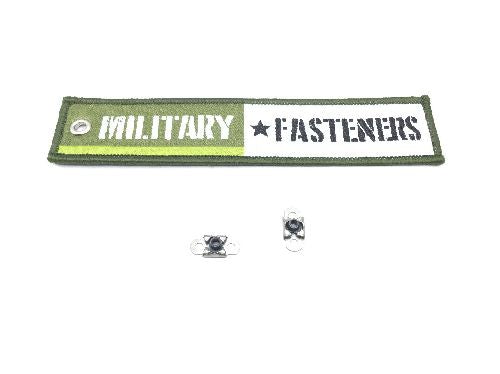

MS21076L04N Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Thread Class

Thread Series

Unjc

Thread Size

0.112 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.404 inches and 0.408 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.198 inches and 0.208 inches
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response or ams 5735 assn standard single material response or ams 5737 assn standard single material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.153 inches
Nut Length: 0.651 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate (floating)
Plate Thickness: Between 0.015 inches and 0.090 inches
Plate Width: Between 0.275 inches and 0.315 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
Lubrication: Dry film lubricant
