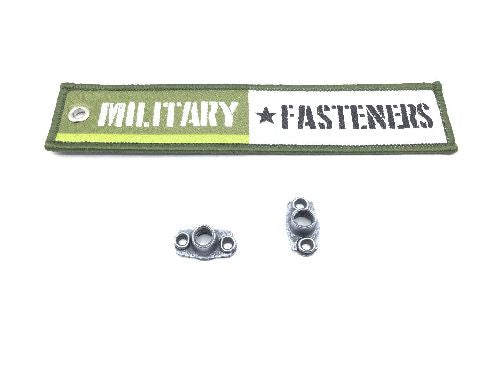

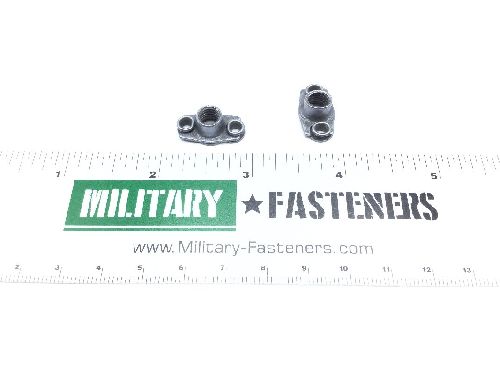

MS21076L4E Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Surface Treatment

Ms 2410 assn standard single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.250 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.560 inches and 0.564 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.276 inches and 0.286 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 49.0 rockwell
Locking Feature: Free-running all metal design
Material Specification: Ams5525 assn standard 1st material response or ams 5735 assn standard 2nd material response or ams 5737 assn standard 3rd material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.281 inches
Nut Length: 0.801 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.14 inches
Plate Width: Between 0.350 inches and 0.500 inches
Precious Material: Silver
Precious Material And Location: Entire surface silver silver
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Lubrication: Dry film lubricant
