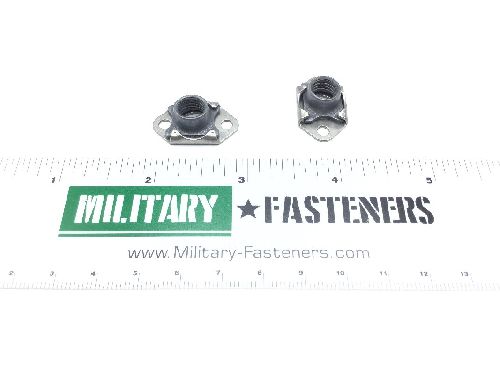

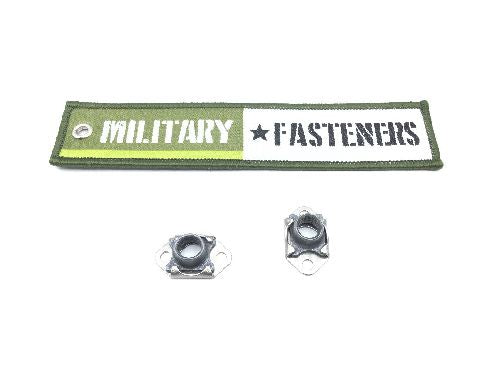

MS21076L5N Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $14.95

Units per Pack 5

Price per Pack $74.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $74.75

Add item to quote

Material

Iron alloy 660

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.312 inches

Center To Center Distance Between Mounting Holes Along Length: 0.720 inches
Distance From Aperture Center To Mounting Hole Center: 0.364 inches
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Ams5525 assn standard single material response or ams5735 assn standard single material response
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: 0.135 inches
Nut Height: 0.328 inches
Nut Length: 1.010 inches
Nut Mounting Provision: Straight holes
Plate Thickness: 0.032 inches
Plate Width: Between 0.412 inches and 0.581 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Lubrication: Dry film lubricant
