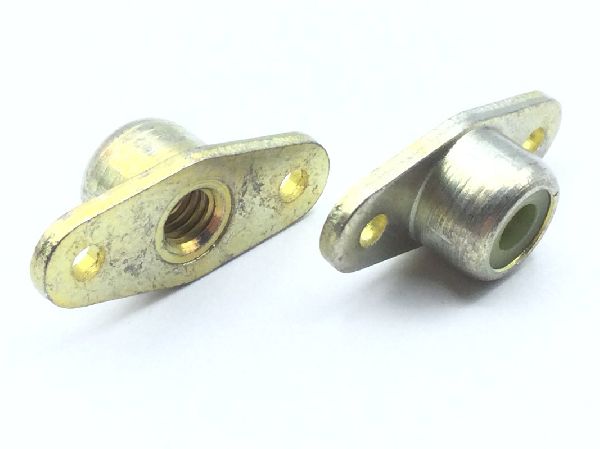

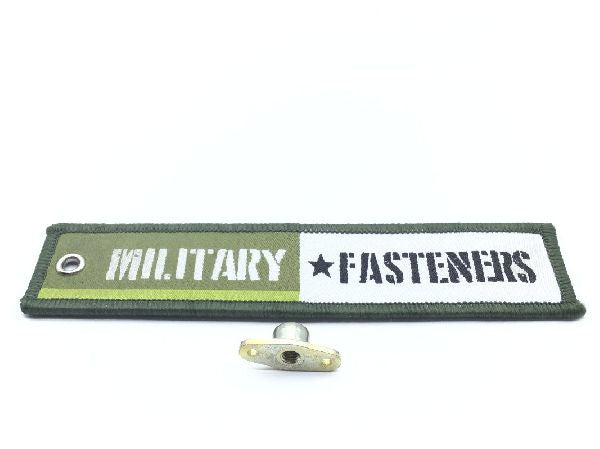

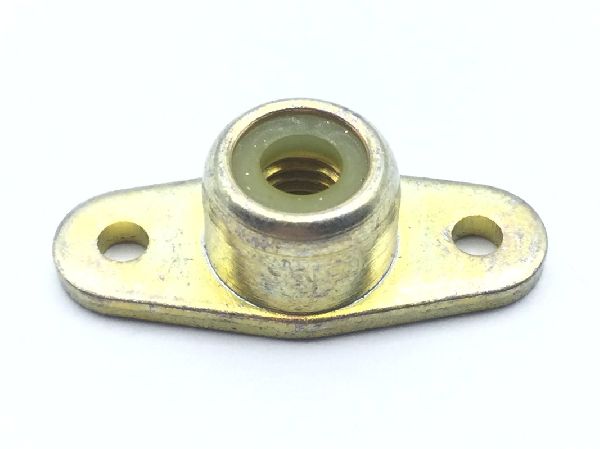

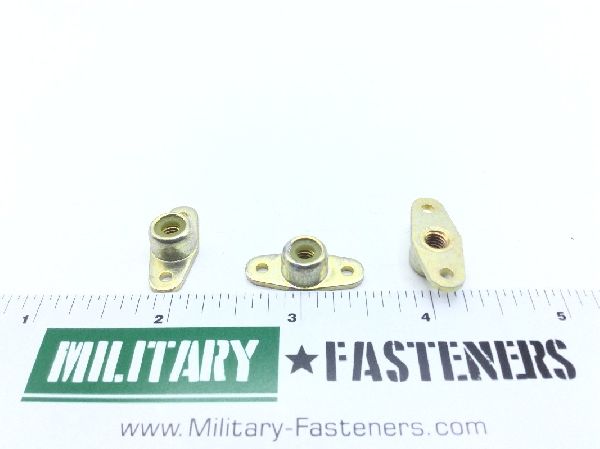

MS21078-3 Self-Locking Nutplate

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Center To Center Distance Between Mounting Holes Along Length: Between 0.686 inches and 0.690 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches
Hardness Rating: 32.0 rockwell c
Locking Feature: Prevailing torque with nonmetallic insert
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: Between 0.234 inches and 0.312 inches
Nut Length: 0.984 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.075 inches
Plate Width: Between 0.375 inches and 0.406 inches
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
