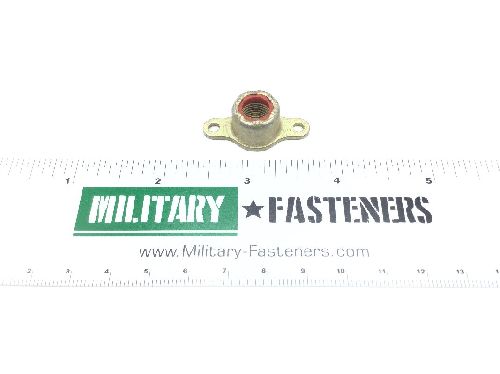

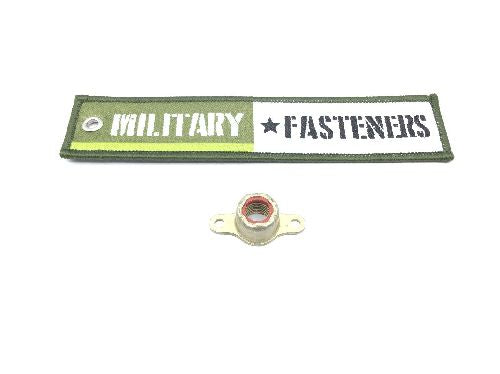

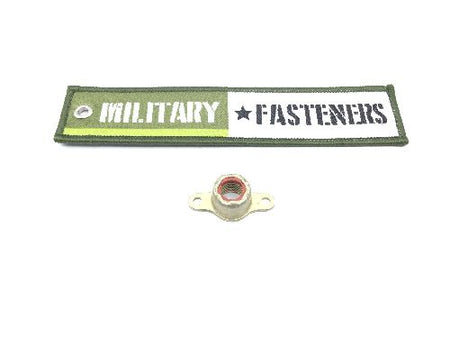

MS21078-6 Self-Locking Nutplate

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Center To Center Distance Between Mounting Holes Along Length: Between 0.998 inches and 1.000 inches
Countersink Angle: 88.0 degrees nut and 102.0 degrees nut
Distance From Aperture Center To Mounting Hole Center: Between 0.495 inches and 0.505 inches
Hardness Rating: 32.0 rockwell c
Locking Feature: Prevailing torque with nonmetallic insert
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.130 inches and 0.135 inches
Nut Height: Between 0.318 inches and 0.453 inches
Nut Length: 1.296 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.115 inches
Plate Width: Between 0.609 inches and 0.641 inches
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
