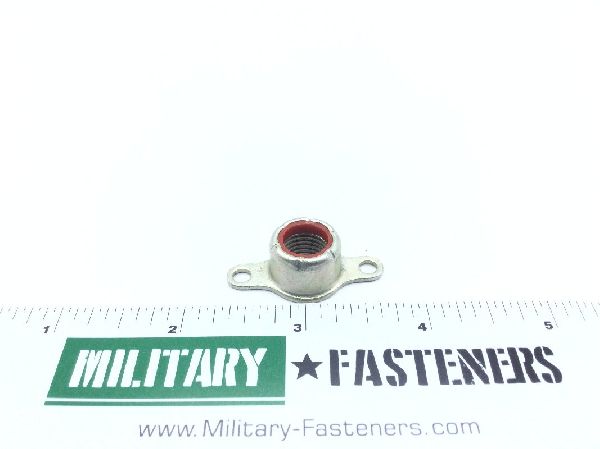

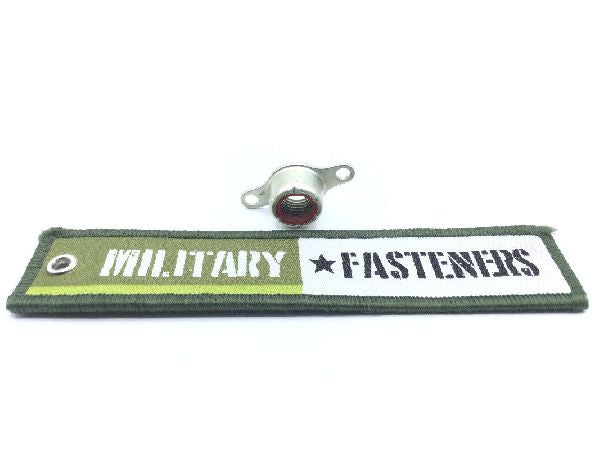

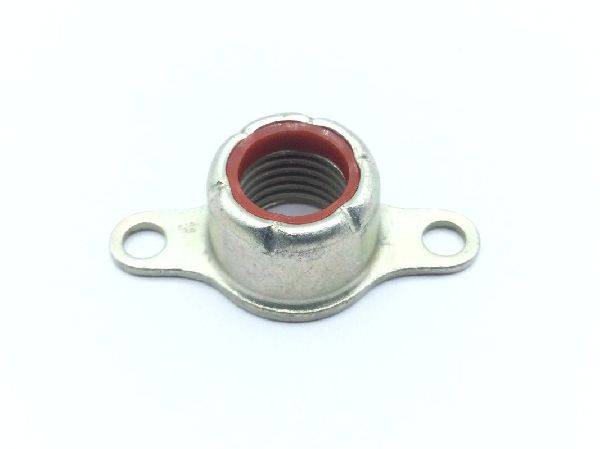

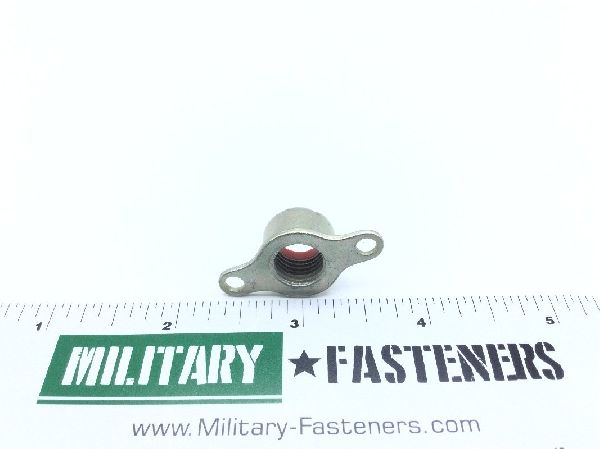

MS21078-7 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $51.21

Units per Pack 1

Price per Pack $51.21

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $51.21

Add item to quote

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response except insert type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.438 inches

Center To Center Distance Between Mounting Holes Along Length: Between 1.123 inches and 1.127 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.557 inches and 0.567 inches
Hardness Rating: 32.0 rockwell c
Locking Feature: Prevailing torque with nonmetallic insert
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.161 inches and 0.166 inches
Nut Height: Between 0.435 inches and 0.469 inches
Nut Length: 1.477 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.115 inches
Plate Width: Between 0.672 inches and 0.719 inches
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
