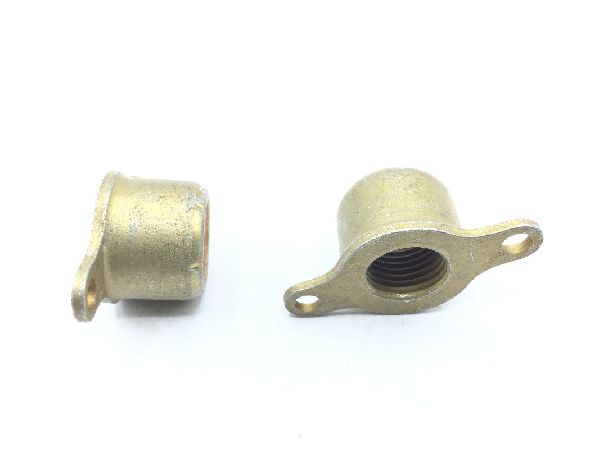

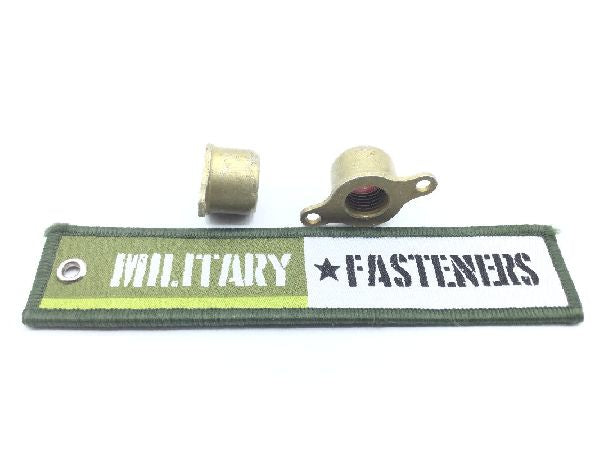

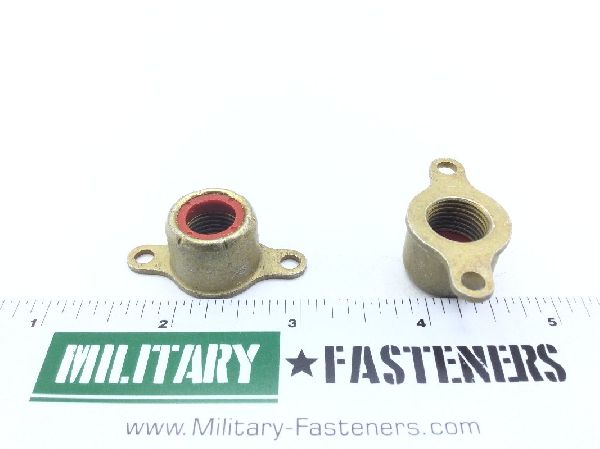

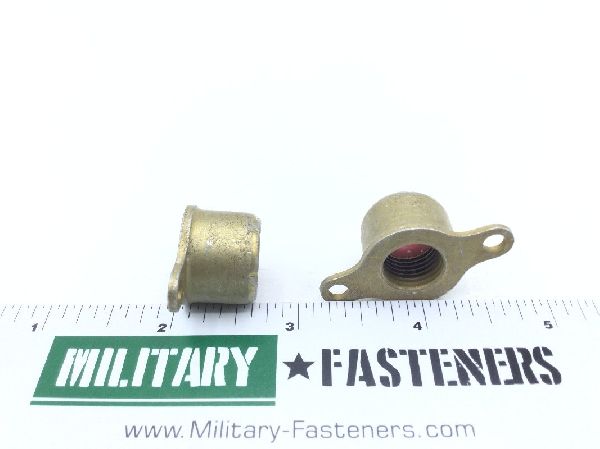

MS21078-8 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $58.80

Units per Pack 1

Price per Pack $58.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $58.80

Add item to quote

Material

Plastic polyamide locking insert

Surface Treatment

Cl 3 federal specification single treatment response nut type 2 qq-p-416

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.50 inches

Center To Center Distance Between Mounting Holes Along Length: Between 1.248 inches and 1.252 inches
Countersink Angle: 88 degrees and 102 degrees
Distance From Aperture Center To Mounting Hole Center: Between 0.620 inches and 0.630 inches
Hardness Rating: 32.0 rockwell c
Locking Feature: Prevailing torque with nonmetallic insert
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.161 inches and 0.166 inches
Nut Height: Between 0.575 inches and 0.609 inches
Nut Length: 1.602 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.115 inches
Plate Width: Between 0.796 inches and 0.859 inches
Tempurature Rating: 450 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
