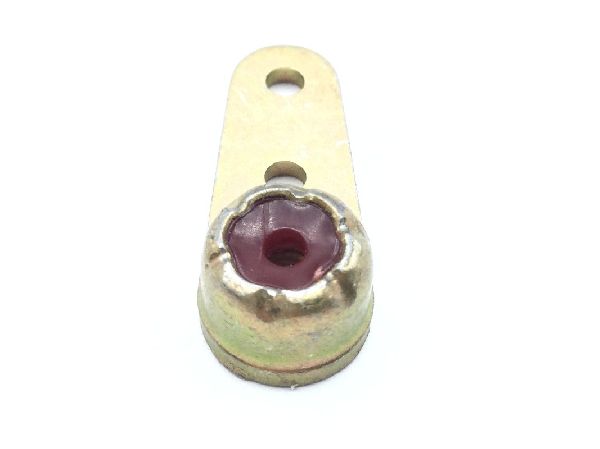

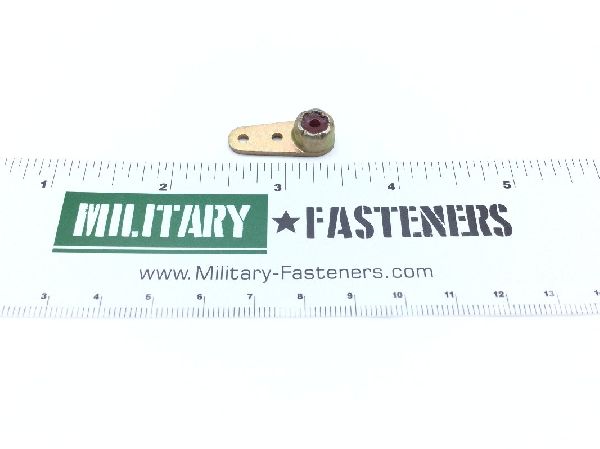

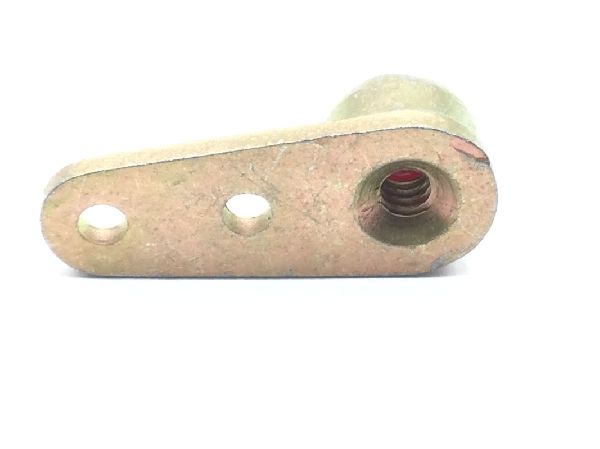

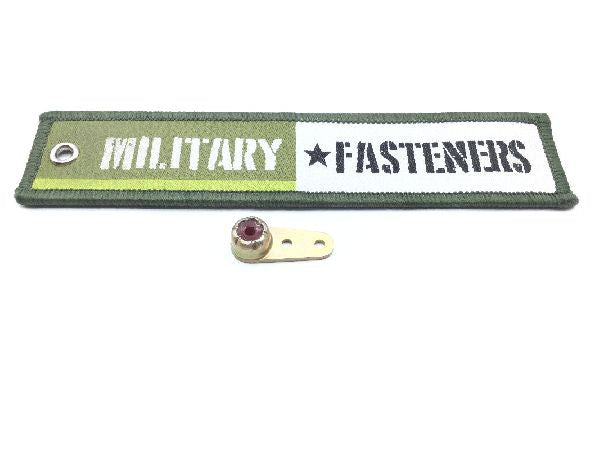

MS21080-06 Self-Locking Nutplate

Product Series: MS
ECCN: 9A991
Schedule: 7318.16.0085

Price per Unit $41.58

Units per Pack 5

Price per Pack $207.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $207.90

Add item to quote

Material

Plastic polyamide locking insert

Surface Treatment

Class 3 federal specification single treatment response except insert type 2 qq-p-416

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.138 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.310 inches and 0.314 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches
Hardness Rating: 32 rockwell c
Locking Feature: Prevailing torque with nonmetallic insert
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: Between 0.160 inches and 0.297 inches
Nut Length: 1.031 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.075 inches
Plate Width: Between 0.375 inches and 0.406 inches
Tempurature Rating: 250 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
