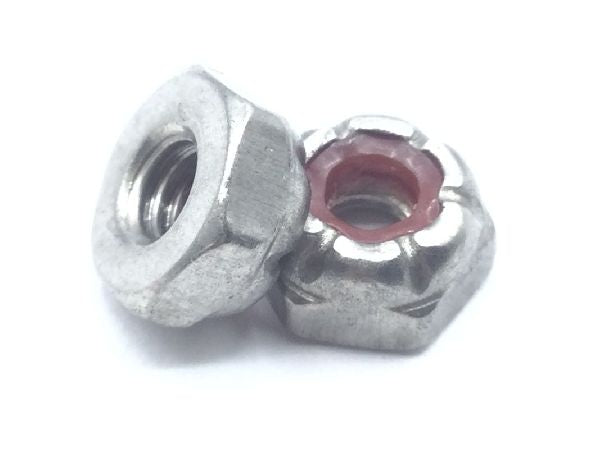

MS21083C08 Self-Locking Hexagon Nut

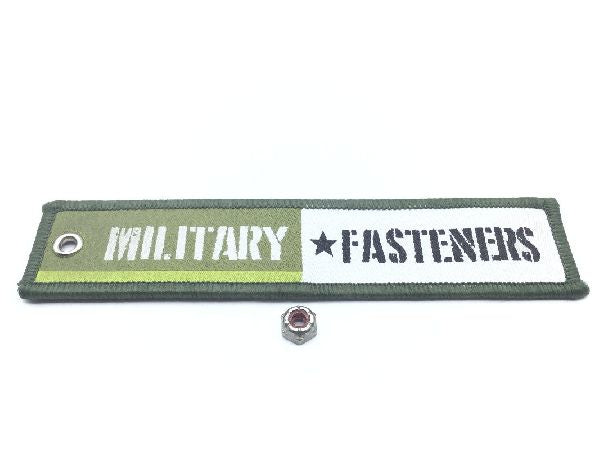

MS21083C08 Self-Locking Hexagon Nut (2)

MS21083C08 Self-Locking Hexagon Nut (3)

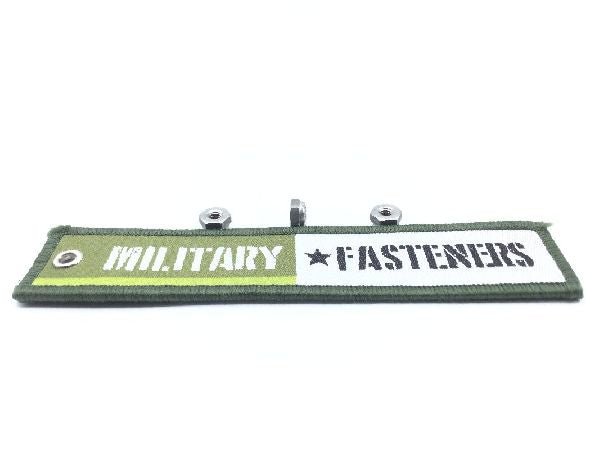

MS21083C08 Self-Locking Hexagon Nut (4)

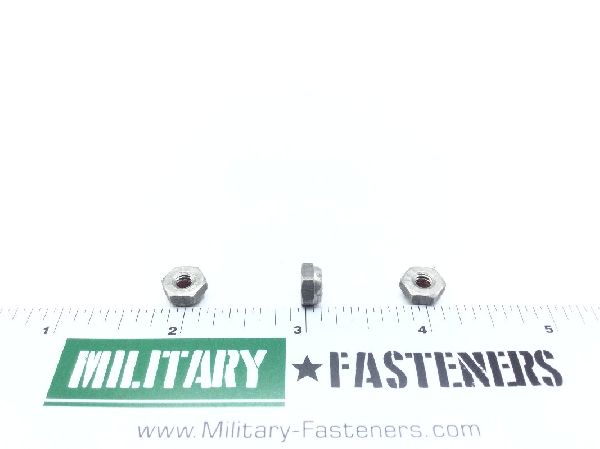

MS21083C08 Self-Locking Hexagon Nut (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21083C08 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.63

Units per Pack 25

Price per Pack $40.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $40.75

Add item to quote

Material

Plastic polyamide locking insert

Surface Treatment

Qq-p-35 federal specification single treatment response except insert

Thread Class

3b

Thread Series

Unjc

Thread Size

0.164 inches

Bearing Surface Finish: 125 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88 degrees
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: 0.188 inches
Nut Style: Hexagon
Tempurature Rating: 250 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.336 inches and 0.345 inches
Lubrication: Soluble lubricant
