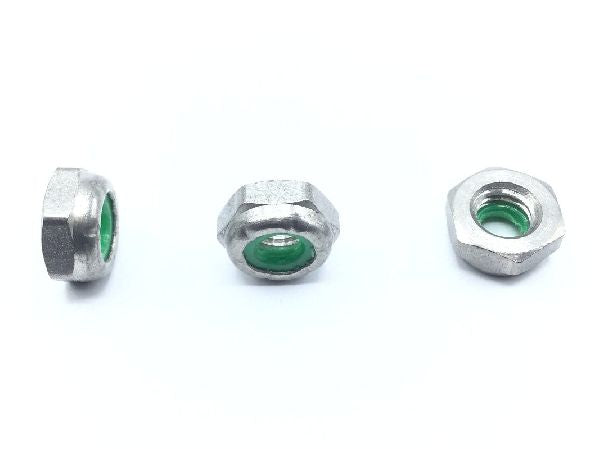

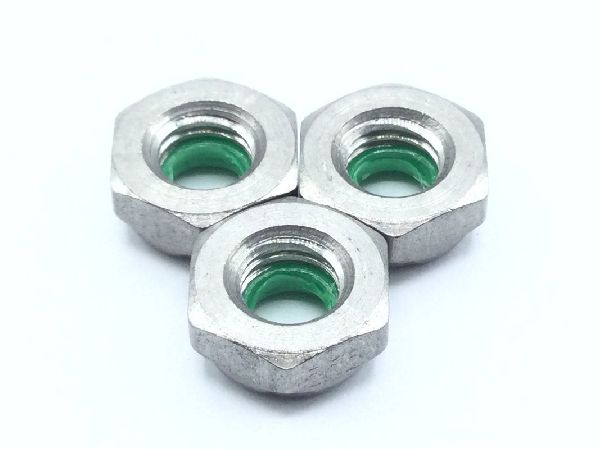

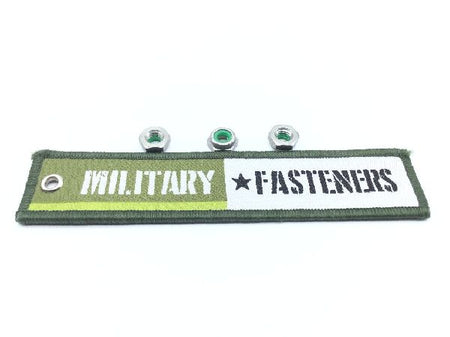

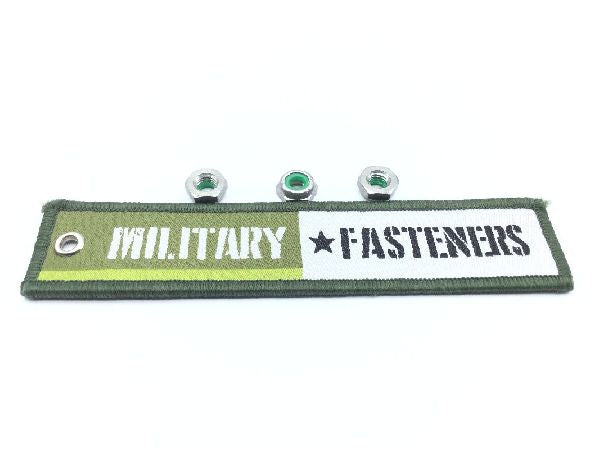

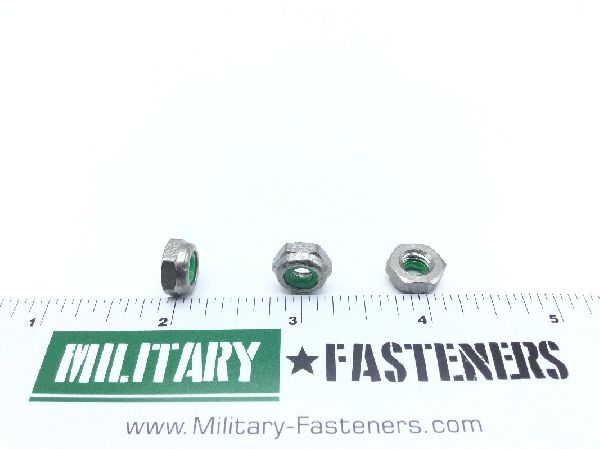

MS21083C4 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $3.60

Units per Pack 10

Price per Pack $36.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $36.00

Add item to quote

Material

Plastic polyamide locking insert

Surface Treatment

Qq-p-35 federal specification single treatment response except insert

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.25 inches

Bearing Surface Finish: 125 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88 degrees
Criticality Code Justification: Feat
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: 0.219 inches
Nut Style: Hexagon
Special Features: Weapon system essential
Tempurature Rating: 250 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Width Across Flats: Between 0.430 inches and 0.439 inches
