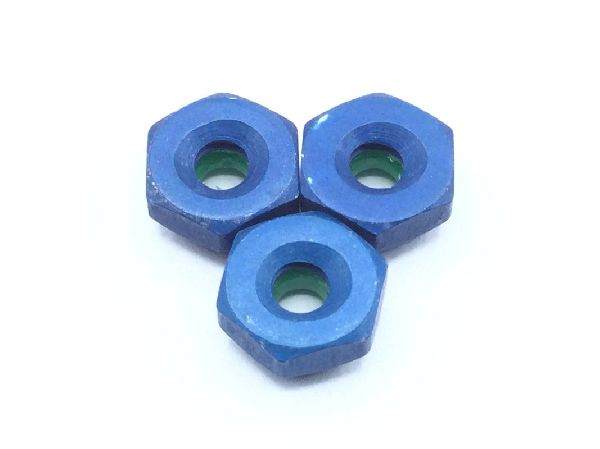

MS21083D04 Locknut

MS21083D04 Locknut (2)

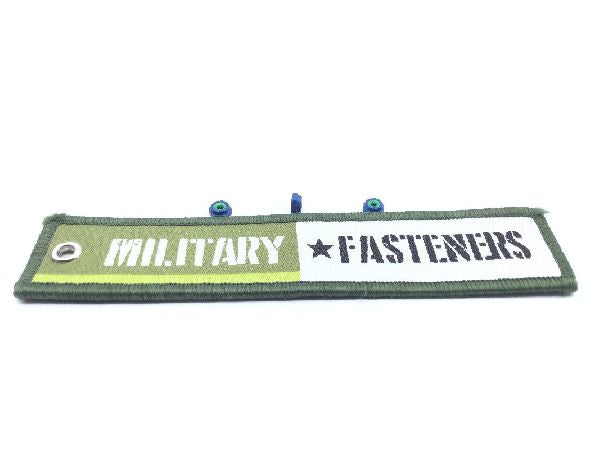

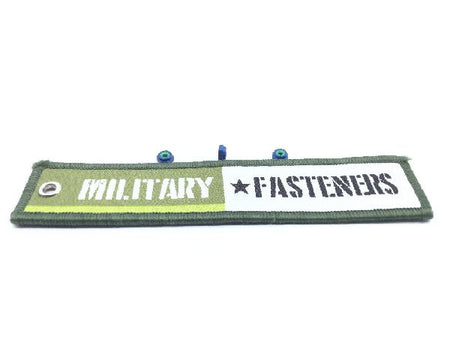

MS21083D04 Locknut (3)

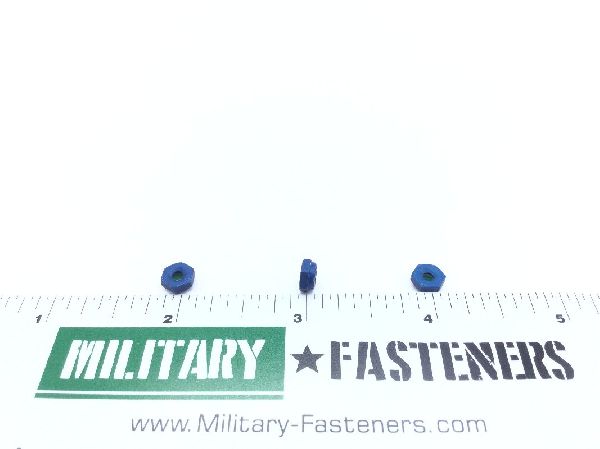

MS21083D04 Locknut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21083D04 Locknut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Aluminum nut

Surface Treatment

Mil-a-8625 military specification 1st treatment response except insert or mil-c-5541 military specification 2nd treatment response except insert

Thread Class

3b

Thread Series

Unjc

Thread Size

0.112 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees nut
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: 0.125 inches
Nut Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
Width Across Flats: Between 0.243 inches and 0.251 inches
Lubrication: Soluble lubricant
