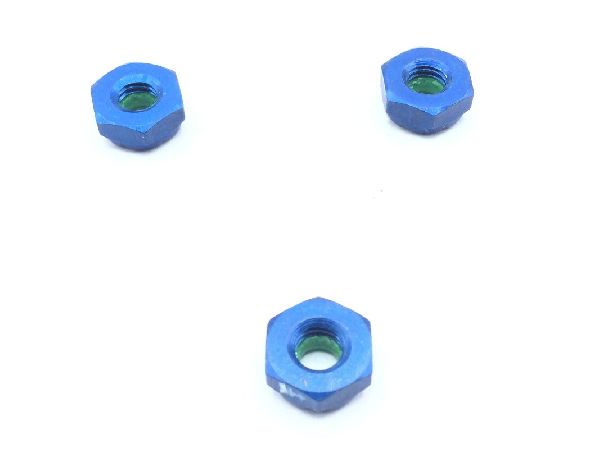

MS21083D3 Self-Locking Hexagon Nut

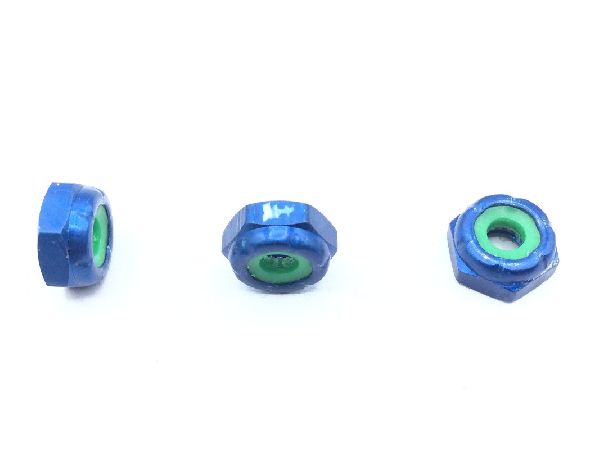

MS21083D3 Self-Locking Hexagon Nut (2)

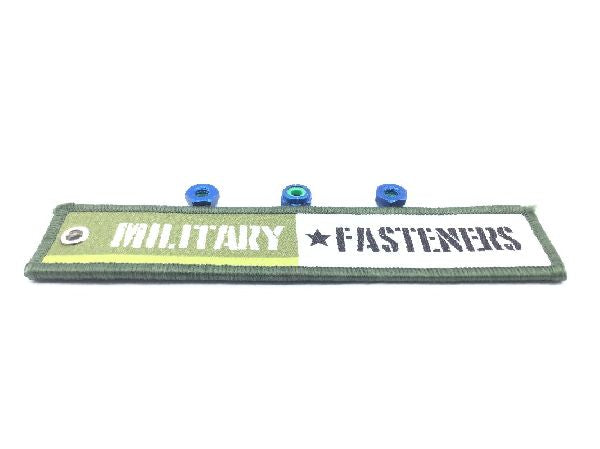

MS21083D3 Self-Locking Hexagon Nut (3)

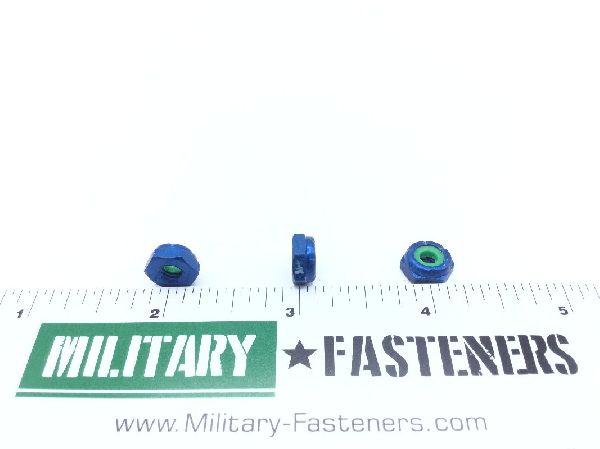

MS21083D3 Self-Locking Hexagon Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21083D3 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Aluminum alloy 2014 nut or aluminum alloy 2024 nut

Surface Treatment

Mil-a-8625 military specification 1st treatment response nut or mil-c-5541 military specification 2nd treatment response nut

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Countersink Angle: 88.0 degrees
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: 0.188 inches
Nut Style: Hexagon
Surface Finish: 125.0 microinches
Surface Type: Chamfered or washer faced
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.367 inches and 0.376 inches
