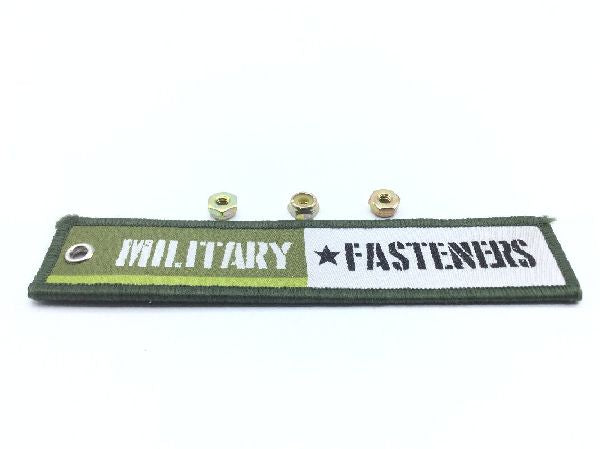

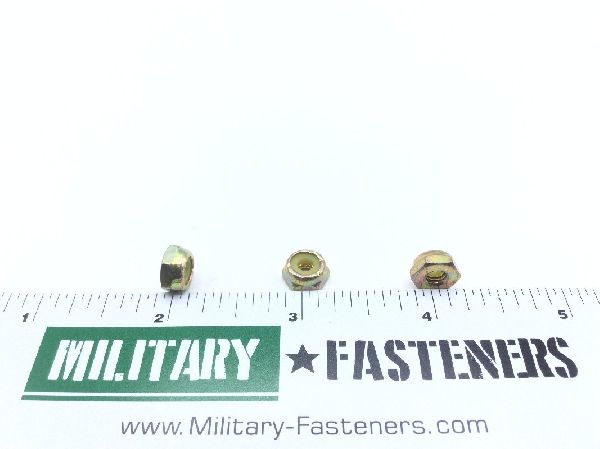

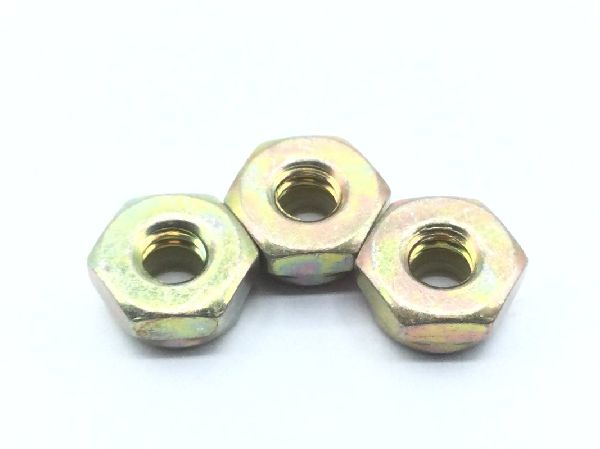

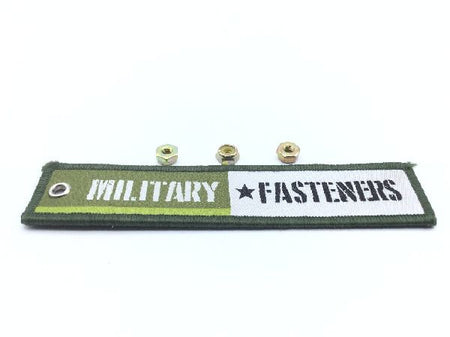

MS21083N08 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $0.39

Units per Pack 100

Price per Pack $39.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $39.00

Add item to quote

Material

Plastic polyamide locking insert

Surface Treatment

Cl 3 federal specification all treatment responses except insert type 2 qq-p-416

Thread Class

Thread Series

Unjc

Thread Size

0.164 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees nut
Hardness Rating: 35.0 rockwell c
Iii End Application: Mrap - cougar tow; mrap - cougar sabr/tow
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: 0.188 inches
Nut Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.336 inches and 0.345 inches
Lubrication: Soluble lubricant
