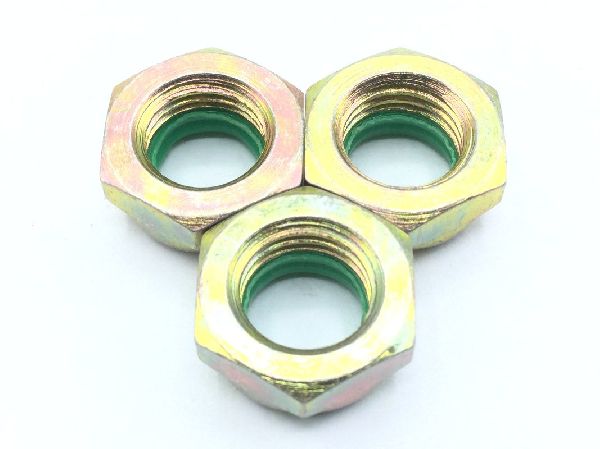

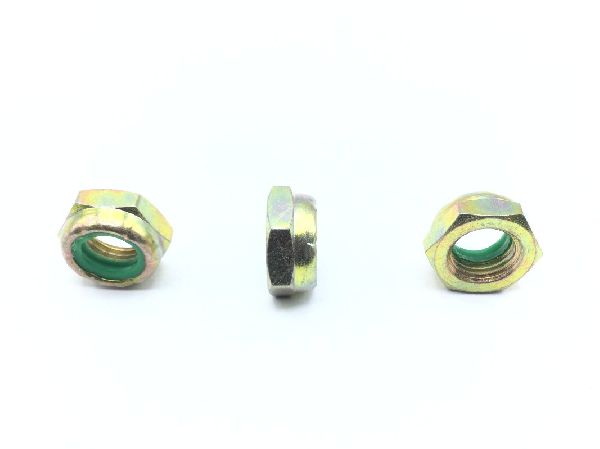

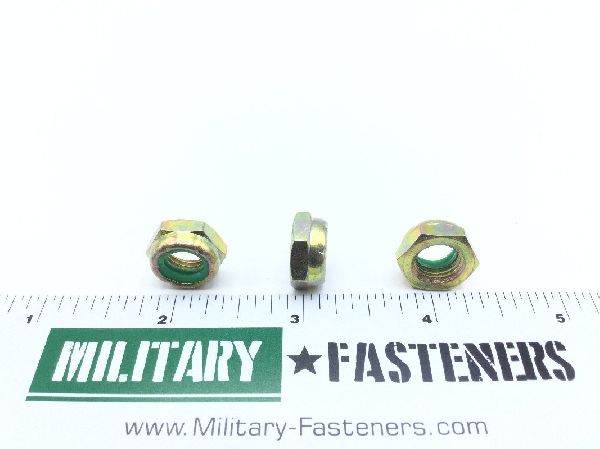

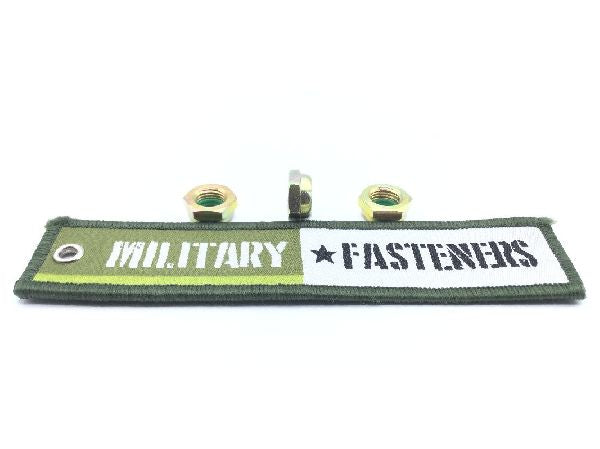

MS21083N6 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.73

Units per Pack 25

Price per Pack $43.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $43.25

Add item to quote

Material

Plastic polyamide locking insert

Surface Treatment

Cl 2 federal specification all treatment responses except insert type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.375 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88.0 degrees nut
Hardness Rating: 35.0 rockwell c
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: 0.282 inches
Nut Style: Hexagon
Tempurature Rating: 250.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.553 inches and 0.564 inches
Lubrication: Soluble lubricant
