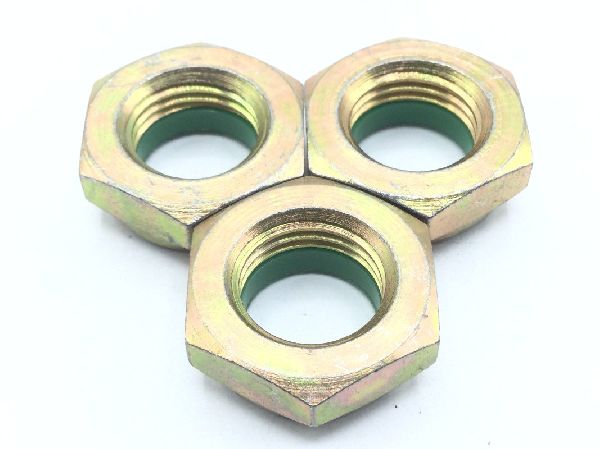

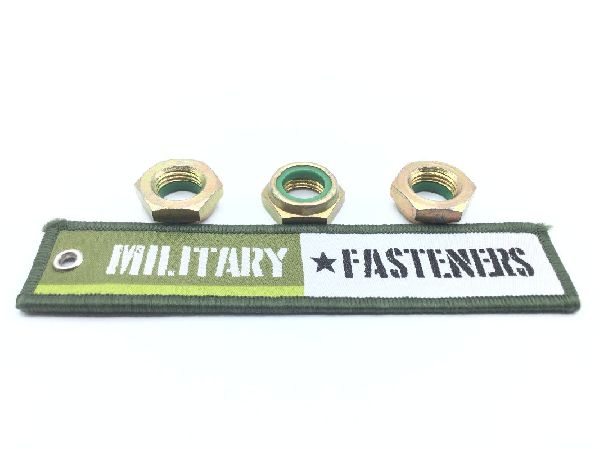

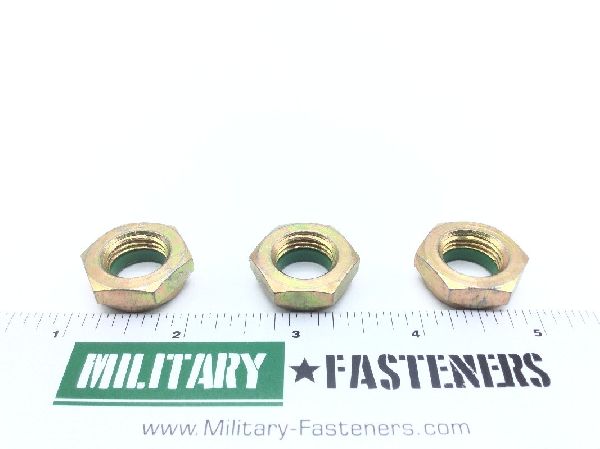

MS21083N9 Self-Locking Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 2 federal specification all treatment responses nut type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.562 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 88 degrees
Hardness Rating: 35.0 rockwell c
Locking Feature: Prevailing torque with nonmetallic insert
Nut Height: 0.375 inches
Nut Style: Hexagon
Tempurature Rating: 250 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Width Across Flats: Between 0.865 inches and 0.877 inches
Lubrication: Soluble lubricant
