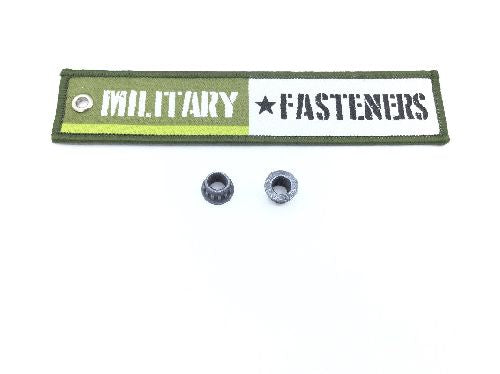

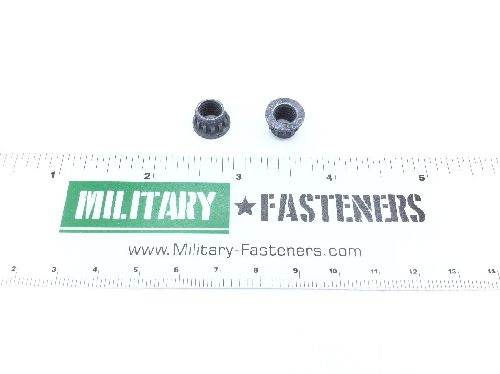

MS21084L04 Locknut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $6.93

Units per Pack 10

Price per Pack $69.30

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $69.30

Add item to quote

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.250 inches

Hardness Rating: 48.0 rockwell c
Locking Feature: Prevailing torque all metal design
Nut Style: Double hexagon
Overall Height: 0.290 inches
Special Features: Wrenching facility per ms33737-10
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Washer Outside Diameter: 0.460 inches
Washer Thickness: 0.033 inches
Lubrication: Dry film lubricant
