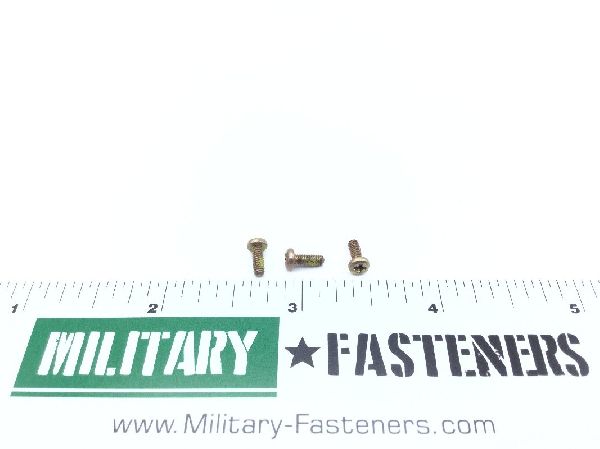

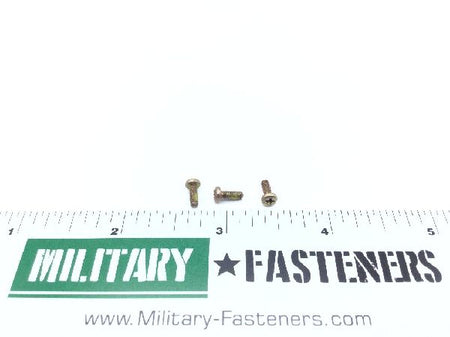

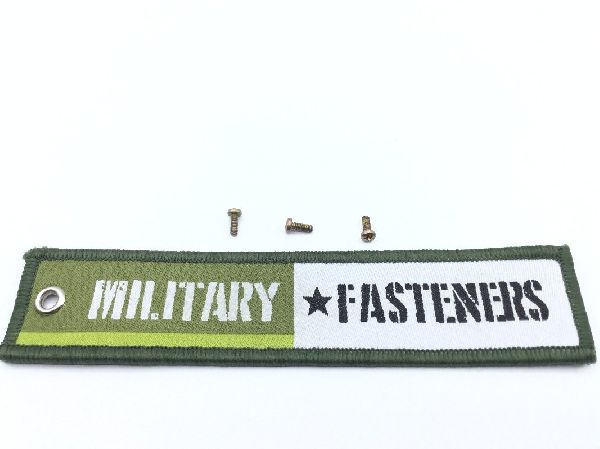

MS21090-02-02 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Pan

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Fastener Length: Between 0.219 inches and 0.250 inches
Head Height: Between 0.053 inches and 0.062 inches
Internal Drive Style: Cross recess type 1
Locking Feature: Pellet threads or strip threads
Material Specification: Qq-s-634 federal specification single material response or qq-s-637 federal specification single material response or 66 federal standard single material response
Min. Tensile Strength (psi): 60000 pounds per square inch
Nondefinitive Specification/std Data: 3 type or 9c style
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.183 inches and 0.250 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.155 inches and 0.167 inches
