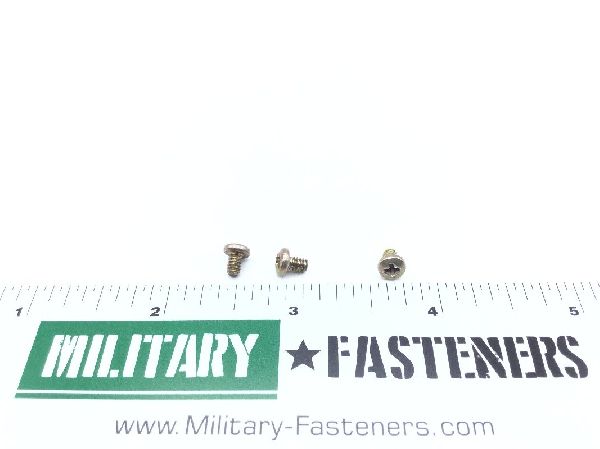

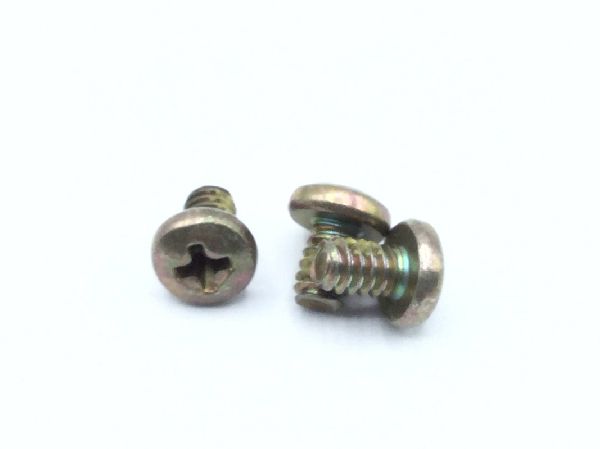

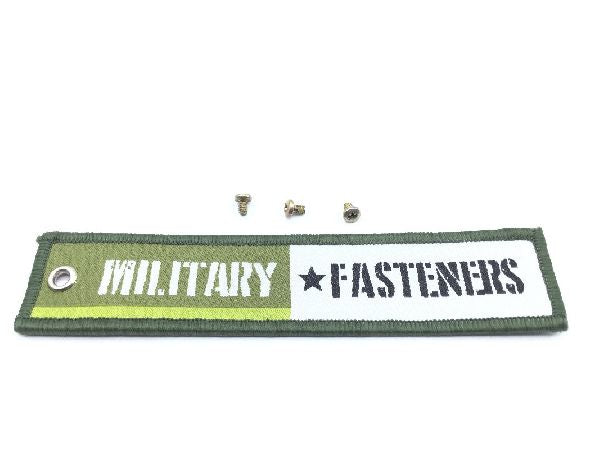

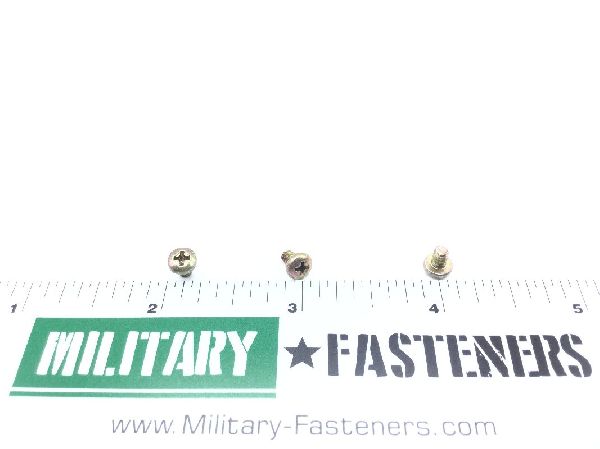

MS21090-0409 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.47

Units per Pack 100

Price per Pack $47.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $47.00

Add item to quote

Head Style

Pan

Material

Steel comp 301 or steel comp 302 or steel comp 302b or steel comp 303 or steel comp 303se or steel comp 304 or steel comp 304l or steel comp 305 or steel comp 308 or steel comp 309 or steel comp 309s or steel comp 310 or steel comp 310s

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Departure From Cited Designator: As modified by locking feature
Fastener Length: Between 0.157 inches and 0.188 inches
Head Height: Between 0.070 inches and 0.080 inches
Internal Drive Style: Cross recess type 1
Locking Feature: Pellet threads or strip threads
Material Specification: Qq-s-637 federal specification all material responses or 66 federal standard all material responses
Nondefinitive Specification/std Data: 3 type and 9c style
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.107 inches and 0.188 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.205 inches and 0.219 inches
