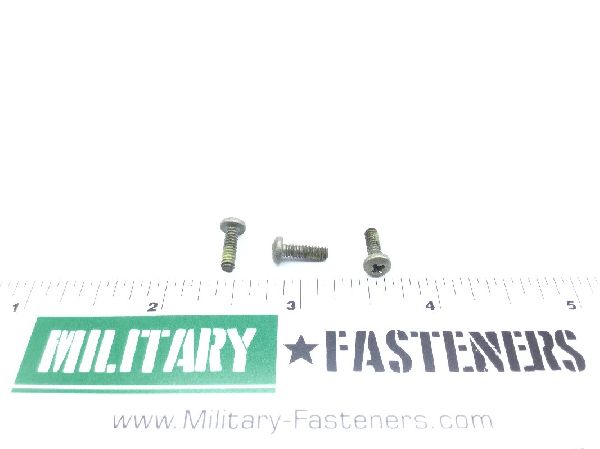

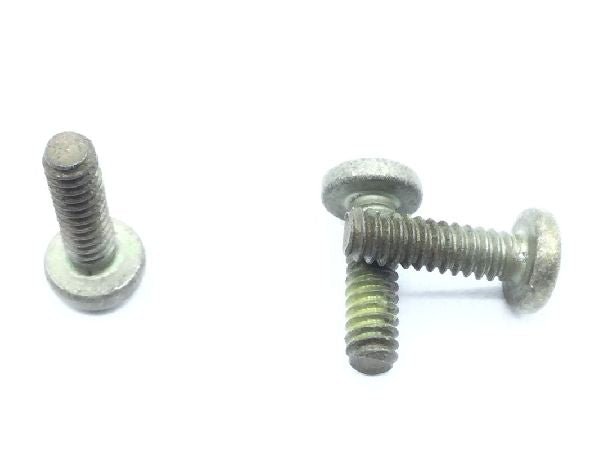

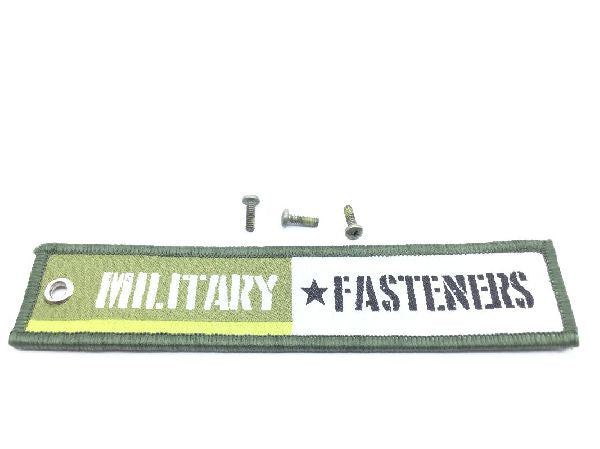

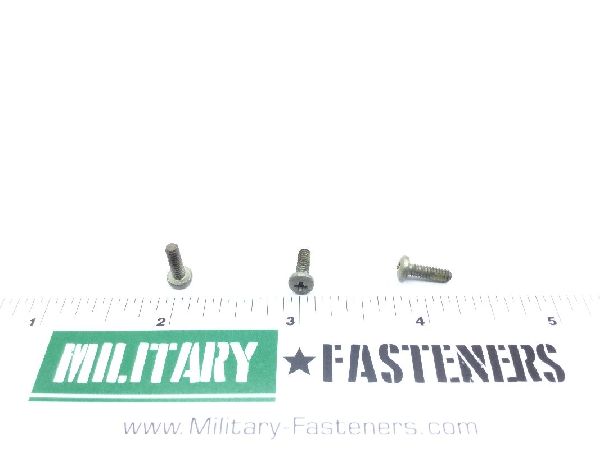

MS21090-0412 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.85

Units per Pack 25

Price per Pack $46.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $46.25

Add item to quote

Head Style

Pan no 2

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 0.344 inches and 0.375 inches
Hardness Rating: 26.0 rockwell c and 32.0 rockwell c
Head Height: Between 0.070 inches and 0.080 inches
Internal Drive Style: Cross recess type 1
Locking Feature: Patch threads or pellet threads or pellet threads or strip threads
Material Specification: Ams 6300 assn standard 1st material response or mil-s-6050 military specification 2nd material response
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.344 inches and 0.375 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.205 inches and 0.219 inches
