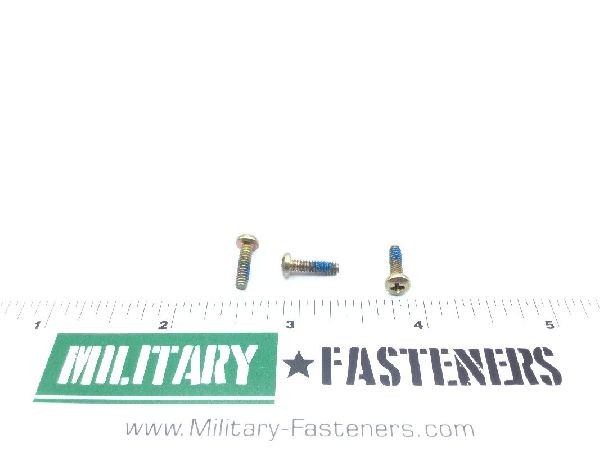

MS21090-0413 Machine Screw

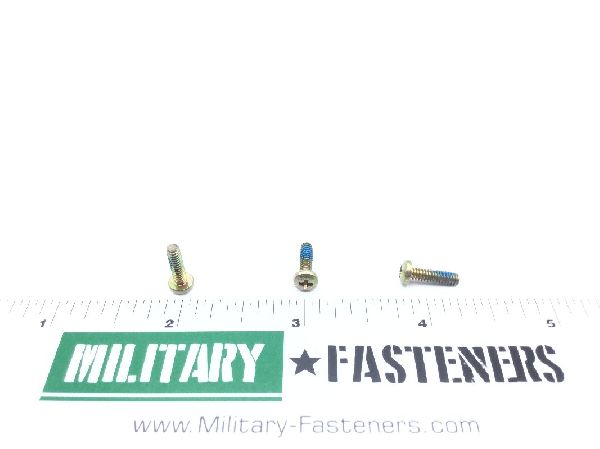

MS21090-0413 Machine Screw (2)

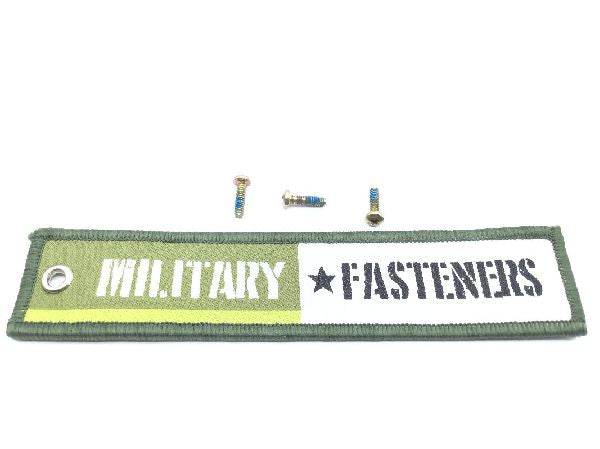

MS21090-0413 Machine Screw (3)

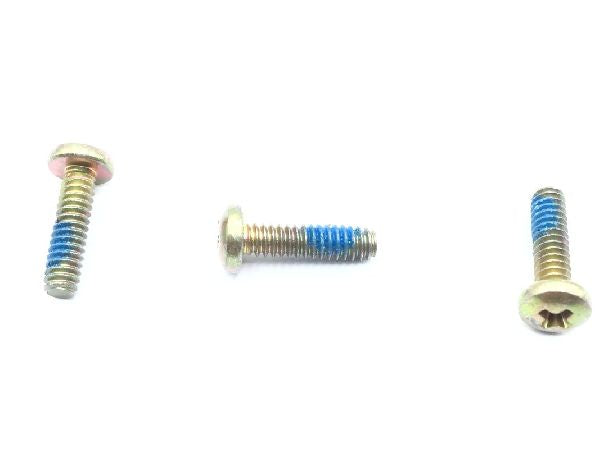

MS21090-0413 Machine Screw (4)

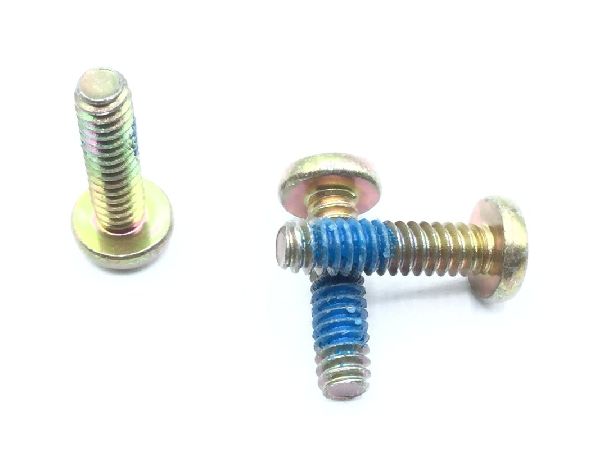

MS21090-0413 Machine Screw (5)

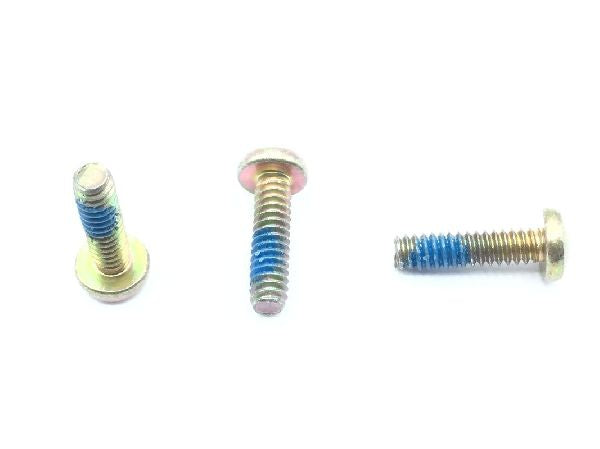

MS21090-0413 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS21090-0413 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.90

Units per Pack 50

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Head Style

Pan

Material

Steel

Thread Class

2a

Departure From Cited Document: N6ne
Fastener Length: 0.437 inches
Head Height: Between 0.070 inches and 0.080 inches
Internal Drive Style: Cross recess type 1
Locking Feature: Strip threads
Material Specification: 66 federal standard single material response
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: 0.467 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.205 inches and 0.219 inches
